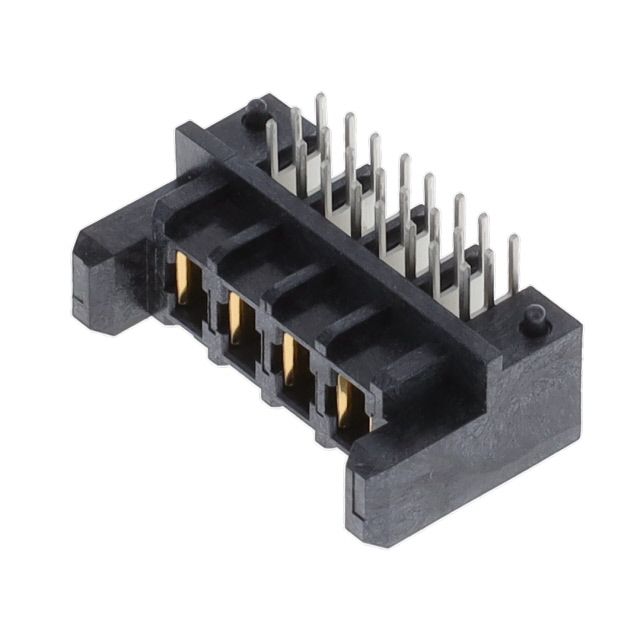

UPS-04-01-01-L-RA

UPS-04-01-01-L-RA

Active
Samtec Inc.

POWER TO THE BOARD .150" POWERSTRIP/20 A DUAL BLADE POWER SOCKET STRIP

Find alt
UPS-04-01-01-L-RA

UPS-04-01-01-L-RA

Active
Samtec Inc.

POWER TO THE BOARD .150" POWERSTRIP/20 A DUAL BLADE POWER SOCKET STRIP

Find alt

Description

General part information

UPS Series

4 Position Receptacle, Female Blade Sockets Connector Solder 0.150" (3.81mm) Through Hole, Right Angle

Technical Specifications

Parameters and characteristics for this part

SpecificationUPS-04-01-01-L-RA
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness10 Ąin
Contact MaterialBeryllium Copper
Current Rating20 A
FeaturesBoard Guide
Material - InsulationLCP, Liquid Crystal Polymer
Mounting TypeThrough Hole, Right Angle
Number of Positions4
Number of Rows1
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch0.15 in
TerminationSolder
Voltage Rating620 V
