CP5.242

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

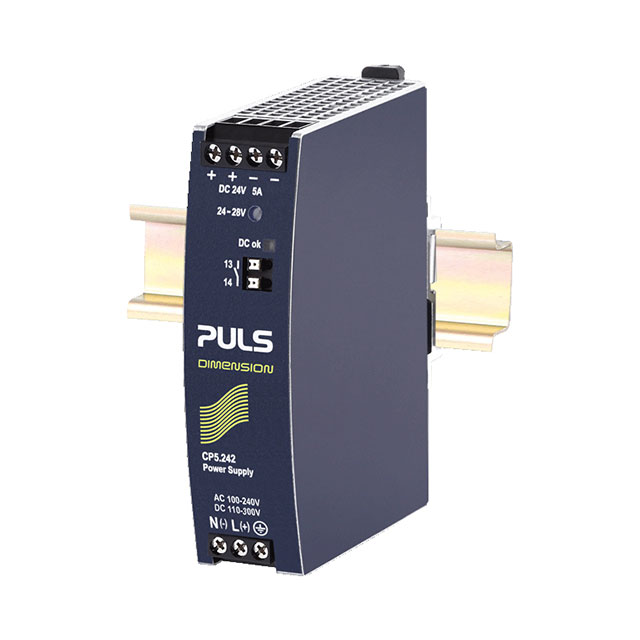

CP5.242

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 243.00

Description

General part information

CP5 Series

AC/DC DIN RAIL SUPPLY 24V 120W

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CP5.242	CP5 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	Industrial, ITE (Commercial), Laboratory	Industrial, ITE (Commercial), Laboratory
Approval Agency	IEC, EAC, UL	IECEx, IEC, ATEX, UL, EAC, CE, cULus, CB
Current - Output (Max) [Max]	5 A	2.5 - 10 A
DC Voltage - Input (Max) [Max]	300 V	150 - 300 V
DC Voltage - Input (Min) [Min]	110 V	110 V
Efficiency	93.6 %	92.6 - 93.6 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC or DC	AC or DC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Size / Dimension [x]	102 mm	102 mm
Size / Dimension [x]	4.02 in	4.02 in
Size / Dimension [y]	32 mm	32 mm
Size / Dimension [y]	1.26 in	1.26 in
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	62368-1, 61010-2-201	61010-2-201, Class I Div 2, 62368-1
Voltage - Isolation	500 V	500 V
Voltage - Output 1	24 V	12 - 48 V

CP5 Series

AC/DC DIN RAIL SUPPLY 24V 120W

Part	Input Type	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Isolation	Standard Number	Approval Agency	Number of Outputs	Voltage - Output 1	Features	Applications	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
PULS, LP CP5.241-S2	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, EAC, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.481	AC or DC	2.5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	92.6 %	500 V		CB, CE, cULus, EAC	1	48 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.121	AC or DC	10 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.2 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, EAC, IEC, IECEx, UL	1	12 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.242	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1	EAC, IEC, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	300 V	-25 °C	70 °C
PULS, LP CP5.241-C1	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.241-S1	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.241	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, EAC, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
