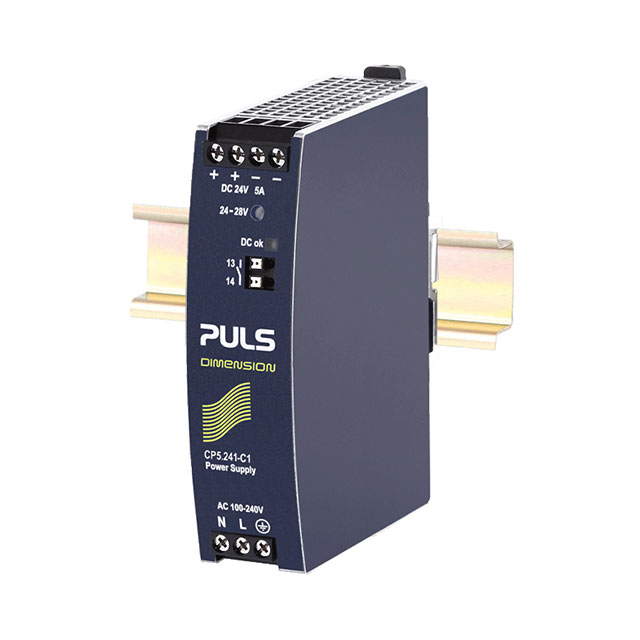

CP5.241-C1

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Deep-Dive with AI

Search across all available documentation for this part.

CP5.241-C1

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 297.00

Description

General part information

CP5 Series

AC/DC DIN RAIL SUPPLY 24V 120W

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CP5.241-C1	CP5 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	Industrial, ITE (Commercial), Laboratory	Industrial, ITE (Commercial), Laboratory
Approval Agency	ATEX, IEC, IECEx, UL	IECEx, IEC, ATEX, UL, EAC, CE, cULus, CB
Current - Output (Max) [Max]	5 A	2.5 - 10 A
DC Voltage - Input (Max) [Max]	150 V	150 - 300 V
DC Voltage - Input (Min) [Min]	110 V	110 V
Efficiency	93.6 %	92.6 - 93.6 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC or DC	AC or DC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Size / Dimension [x]	102 mm	102 mm
Size / Dimension [x]	4.02 in	4.02 in
Size / Dimension [y]	32 mm	32 mm
Size / Dimension [y]	1.26 in	1.26 in
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	61010-2-201, Class I Div 2, 62368-1	61010-2-201, Class I Div 2, 62368-1
Voltage - Isolation	500 V	500 V
Voltage - Output 1	24 V	12 - 48 V

CP5 Series

AC/DC DIN RAIL SUPPLY 24V 120W

Part	Input Type	Current - Output (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Isolation	Standard Number	Approval Agency	Number of Outputs	Voltage - Output 1	Features	Applications	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]
PULS, LP CP5.241-S2	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, EAC, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.481	AC or DC	2.5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	92.6 %	500 V		CB, CE, cULus, EAC	1	48 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.121	AC or DC	10 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.2 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, EAC, IEC, IECEx, UL	1	12 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.242	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1	EAC, IEC, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	300 V	-25 °C	70 °C
PULS, LP CP5.241-C1	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.241-S1	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
PULS, LP CP5.241	AC or DC	5 A	85 VAC	264 VAC	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	93.6 %	500 V	61010-2-201, 62368-1, Class I Div 2	ATEX, EAC, IEC, IECEx, UL	1	24 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	Industrial, ITE (Commercial), Laboratory	110 V	150 V	-25 °C	70 °C
