DAC539G2WRTERQ1
ActiveAUTOMOTIVE, 10-BIT LOOK-UP-TABLE BASED GPI-TO-PWM CONVERTER FOR A SINGLE-WIRE ERROR COMMUNICATION
Deep-Dive with AI
Search across all available documentation for this part.
DAC539G2WRTERQ1
ActiveAUTOMOTIVE, 10-BIT LOOK-UP-TABLE BASED GPI-TO-PWM CONVERTER FOR A SINGLE-WIRE ERROR COMMUNICATION
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DAC539G2WRTERQ1 | DAC539G2-Q1 Series |
|---|---|---|
| Architecture | String DAC | String DAC |
| Data Interface | SPI, I2C | SPI, I2C |
| Differential Output | False | False |
| Grade | Automotive | Automotive |
| INL/DNL (LSB) [Max] | 1 LSB, 1.25 LSB | 1 - 1.25 LSB |
| INL/DNL (LSB) [Min] | -1.25 LSB, -1 LSB | -1.25 - -1 LSB |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Surface Mount, Wettable Flank |
| Number of Bits | 10 | 10 |
| Number of Channels | - | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Voltage - Buffered | Voltage - Buffered |

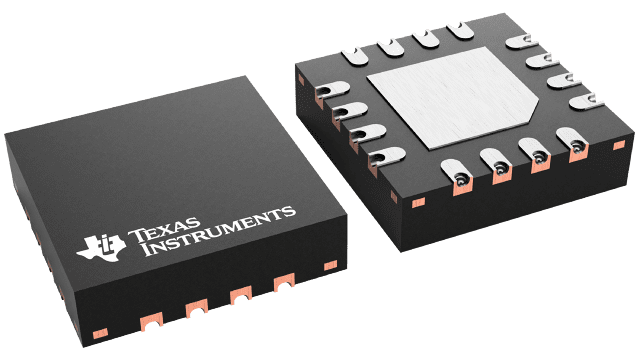

| Package / Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Qualification | AEC-Q100 | AEC-Q100 |
| Reference Type | Supply, Internal, External | Supply, Internal, External |
| Resolution (Bits) | - | 10 b |
| Sampling Rate (Per Second) | - | 25k |
| Settling Time | 25 µs | 25 µs |
| Supplier Device Package | 16-WQFN (3x3) | 16-WQFN (3x3) |
| Type | - | DAC |
| Voltage - Supply | - | 5.5 V |
| Voltage - Supply | - | 1.7 V |
| Voltage - Supply, Analog [Max] | 5.5 V | 5.5 V |
| Voltage - Supply, Analog [Min] | 1.7 V | 1.7 V |
| Voltage - Supply, Digital [Max] | 5.5 V | 5.5 V |
| Voltage - Supply, Digital [Min] | 1.7 V | 1.7 V |
| Voltage Supply Source | - | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DAC539G2-Q1 Series
Automotive, 10-bit look-up-table based GPI-to-PWM converter for a single-wire error communication
| Part | Type | Grade | Voltage - Supply [Max] | Voltage - Supply [Min] | Voltage Supply Source | Number of Channels [custom] | Mounting Type | Package / Case | Supplier Device Package | Sampling Rate (Per Second) | Qualification | Resolution (Bits) | Data Interface | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | INL/DNL (LSB) [Min] | INL/DNL (LSB) [Max] | Settling Time | Architecture | Reference Type | Number of Bits | Output Type | Differential Output | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DAC539G2RTERQ1The DAC539G2-Q1 is an application-specific, look-up table (LUT) based GPI-to-PWM converter. This device has a 10-bit GPI-to-voltage output converter and a voltage-to-PWM converter. Both these circuits can be externally connected to create a GPI-to-PWM converter. Three GPIs are mapped to eight 10-bit digital codes that represent the voltage output. There is a programmable delay at the GPIs for eliminating glitches on these inputs. The look-up table values are programmed using I 2C or SPI and stored in the NVM. The GPIs are multiplexed with the I 2C and SPI. The voltage-to-PWM converter uses a comparator with one input as a programmable sawtooth or triangle waveform and the other input as an external voltage input.
This device automatically detects I 2C and SPI and has an internal reference. The DAC539G2-Q1 is an excellent choice for fault communication in automotive stop and turn lights and similar industrial applications.
The DAC539G2-Q1 is an application-specific, look-up table (LUT) based GPI-to-PWM converter. This device has a 10-bit GPI-to-voltage output converter and a voltage-to-PWM converter. Both these circuits can be externally connected to create a GPI-to-PWM converter. Three GPIs are mapped to eight 10-bit digital codes that represent the voltage output. There is a programmable delay at the GPIs for eliminating glitches on these inputs. The look-up table values are programmed using I 2C or SPI and stored in the NVM. The GPIs are multiplexed with the I 2C and SPI. The voltage-to-PWM converter uses a comparator with one input as a programmable sawtooth or triangle waveform and the other input as an external voltage input.
This device automatically detects I 2C and SPI and has an internal reference. The DAC539G2-Q1 is an excellent choice for fault communication in automotive stop and turn lights and similar industrial applications. | DAC | Automotive | 5.5 V | 1.7 V | Single Supply | 1 | Surface Mount | 16-WFQFN Exposed Pad | 16-WQFN (3x3) | 25k | AEC-Q100 | 10 b | I2C, SPI | -40 °C | 125 °C | ||||||||||||
Texas Instruments DAC539G2WRTERQ1The DAC539G2-Q1 is an application-specific, look-up table (LUT) based GPI-to-PWM converter. This device has a 10-bit GPI-to-voltage output converter and a voltage-to-PWM converter. Both these circuits can be externally connected to create a GPI-to-PWM converter. Three GPIs are mapped to eight 10-bit digital codes that represent the voltage output. There is a programmable delay at the GPIs for eliminating glitches on these inputs. The look-up table values are programmed using I 2C or SPI and stored in the NVM. The GPIs are multiplexed with the I 2C and SPI. The voltage-to-PWM converter uses a comparator with one input as a programmable sawtooth or triangle waveform and the other input as an external voltage input.
This device automatically detects I 2C and SPI and has an internal reference. The DAC539G2-Q1 is an excellent choice for fault communication in automotive stop and turn lights and similar industrial applications.
The DAC539G2-Q1 is an application-specific, look-up table (LUT) based GPI-to-PWM converter. This device has a 10-bit GPI-to-voltage output converter and a voltage-to-PWM converter. Both these circuits can be externally connected to create a GPI-to-PWM converter. Three GPIs are mapped to eight 10-bit digital codes that represent the voltage output. There is a programmable delay at the GPIs for eliminating glitches on these inputs. The look-up table values are programmed using I 2C or SPI and stored in the NVM. The GPIs are multiplexed with the I 2C and SPI. The voltage-to-PWM converter uses a comparator with one input as a programmable sawtooth or triangle waveform and the other input as an external voltage input.
This device automatically detects I 2C and SPI and has an internal reference. The DAC539G2-Q1 is an excellent choice for fault communication in automotive stop and turn lights and similar industrial applications. | Automotive | Surface Mount, Wettable Flank | 16-WFQFN Exposed Pad | 16-WQFN (3x3) | AEC-Q100 | I2C, SPI | -40 °C | 125 °C | 5.5 V | 1.7 V | -1.25 LSB, -1 LSB | 1 LSB, 1.25 LSB | 25 µs | String DAC | External, Internal, Supply | 10 | Voltage - Buffered | 5.5 V | 1.7 V |
Description
General part information
DAC539G2-Q1 Series
The DAC539G2-Q1 is an application-specific, look-up table (LUT) based GPI-to-PWM converter. This device has a 10-bit GPI-to-voltage output converter and a voltage-to-PWM converter. Both these circuits can be externally connected to create a GPI-to-PWM converter. Three GPIs are mapped to eight 10-bit digital codes that represent the voltage output. There is a programmable delay at the GPIs for eliminating glitches on these inputs. The look-up table values are programmed using I 2C or SPI and stored in the NVM. The GPIs are multiplexed with the I 2C and SPI. The voltage-to-PWM converter uses a comparator with one input as a programmable sawtooth or triangle waveform and the other input as an external voltage input.
This device automatically detects I 2C and SPI and has an internal reference. The DAC539G2-Q1 is an excellent choice for fault communication in automotive stop and turn lights and similar industrial applications.
The DAC539G2-Q1 is an application-specific, look-up table (LUT) based GPI-to-PWM converter. This device has a 10-bit GPI-to-voltage output converter and a voltage-to-PWM converter. Both these circuits can be externally connected to create a GPI-to-PWM converter. Three GPIs are mapped to eight 10-bit digital codes that represent the voltage output. There is a programmable delay at the GPIs for eliminating glitches on these inputs. The look-up table values are programmed using I 2C or SPI and stored in the NVM. The GPIs are multiplexed with the I 2C and SPI. The voltage-to-PWM converter uses a comparator with one input as a programmable sawtooth or triangle waveform and the other input as an external voltage input.
