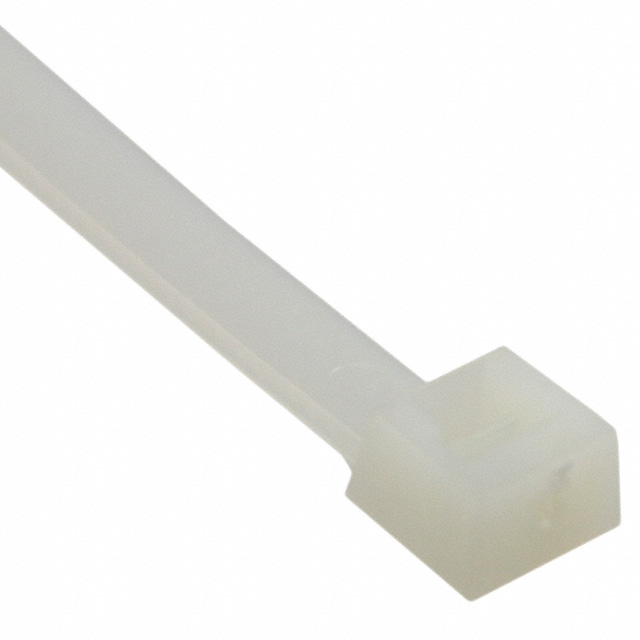

CT15NT50-C

Active

3M (TC)

CBL TIE LOCKING NAT 50LBS 1.217'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT15NT50-C

Active

3M (TC)

CBL TIE LOCKING NAT 50LBS 1.217'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT15NT50-C

Bundle Diameter [diameter]	4 in
Bundle Diameter [diameter]	101.6 mm
Color	Natural
Length - Actual [x]	370.84 mm
Length - Actual [x]	1.217 ft
Length - Approximate	14.5 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [x]	0.18 in
Width [x]	4.57 mm
Wire/Cable Tie Type	Standard, Locking

CT15 Series

Part	Mounting Type	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Width [x]	Width	Tensile Strength	Tensile Strength	Length - Actual	Length - Actual	Material	Wire/Cable Tie Type	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life	Length - Actual [x]	Length - Actual [x]	Width [x]	Features
3M (TC) CT15NT120S-D	Mounting Hole Screw Mount	Natural	4 in	101.6 mm	15.75 in	0.3 "	7.62 mm	54.43 kg	120 lbs	1.308 ft	398.78 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months
3M (TC) CT15NT50S-D	Mounting Hole Screw Mount	Natural	4 in	101.6 mm	15 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	384 mm	1.26 ft	4.57 mm
3M (TC) CT15NT50-D	Free Hanging (In-Line)	Natural	4 in	101.6 mm	14.5 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	370.84 mm	1.217 ft	4.57 mm
3M (TC) CT15BK120-D	Free Hanging (In-Line)	Black	4 in	101.6 mm	15 in	0.3 "	7.62 mm	54.43 kg	120 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months				UV Resistant
3M (TC) CT15NT50S-L	Mounting Hole Screw Mount	Natural	4 in	101.6 mm	15 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	384 mm	1.26 ft	4.57 mm
3M (TC) CT15NT50-C	Free Hanging (In-Line)	Natural	4 in	101.6 mm	14.5 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	370.84 mm	1.217 ft	4.57 mm
3M (TC) CT15BK120-C	Free Hanging (In-Line)	Black	4 in	101.6 mm	15 in	0.3 "	7.62 mm	54.43 kg	120 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months				UV Resistant
3M (TC) CT15NT120-D	Free Hanging (In-Line)	Natural	4 in	101.6 mm	15 in	0.3 "	7.62 mm	54.43 kg	120 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.21
		200	$ 0.19
		300	$ 0.18
		500	$ 0.17
		700	$ 0.16
		1000	$ 0.16
		2500	$ 0.14
		5000	$ 0.13
		10000	$ 0.12

Description

General part information

CT15 Series

Standard, Locking Natural 4.00" (101.60mm) 0.180" (4.57mm) 50 lbs (22.68 kg)
