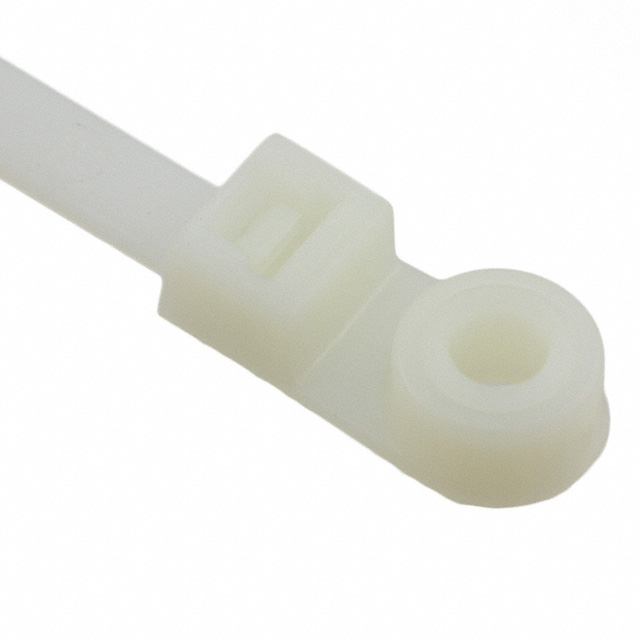

CT15NT120S-D

Active

3M (TC)

CBL TIE LOCKING NAT 120LB 1.308'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT15NT120S-D

Active

3M (TC)

CBL TIE LOCKING NAT 120LB 1.308'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT15NT120S-D

Bundle Diameter [diameter]	4 in
Bundle Diameter [diameter]	101.6 mm
Color	Natural
Length - Actual	1.308 ft
Length - Actual	398.78 mm
Length - Approximate	15.75 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Mounting Hole, Screw Mount
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tensile Strength	54.43 kg
Tensile Strength	120 lbs
Width	7.62 mm
Width [x]	0.3 "
Wire/Cable Tie Type	Standard, Locking

CT15 Series

Part	Mounting Type	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Width [x]	Width	Tensile Strength	Tensile Strength	Length - Actual	Length - Actual	Material	Wire/Cable Tie Type	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life	Length - Actual [x]	Length - Actual [x]	Width [x]	Features
3M (TC) CT15NT120S-D	Mounting Hole Screw Mount	Natural	4 in	101.6 mm	15.75 in	0.3 "	7.62 mm	54.43 kg	120 lbs	1.308 ft	398.78 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months
3M (TC) CT15NT50S-D	Mounting Hole Screw Mount	Natural	4 in	101.6 mm	15 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	384 mm	1.26 ft	4.57 mm
3M (TC) CT15NT50-D	Free Hanging (In-Line)	Natural	4 in	101.6 mm	14.5 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	370.84 mm	1.217 ft	4.57 mm
3M (TC) CT15BK120-D	Free Hanging (In-Line)	Black	4 in	101.6 mm	15 in	0.3 "	7.62 mm	54.43 kg	120 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months				UV Resistant
3M (TC) CT15NT50S-L	Mounting Hole Screw Mount	Natural	4 in	101.6 mm	15 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	384 mm	1.26 ft	4.57 mm
3M (TC) CT15NT50-C	Free Hanging (In-Line)	Natural	4 in	101.6 mm	14.5 in	0.18 in		22.68 kg	50 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	370.84 mm	1.217 ft	4.57 mm
3M (TC) CT15BK120-C	Free Hanging (In-Line)	Black	4 in	101.6 mm	15 in	0.3 "	7.62 mm	54.43 kg	120 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months				UV Resistant
3M (TC) CT15NT120-D	Free Hanging (In-Line)	Natural	4 in	101.6 mm	15 in	0.3 "	7.62 mm	54.43 kg	120 lbs			Polyamide (PA66) Nylon 6/6	Locking Standard	Date of Manufacture	27 °C 80 °F	10 °C	60 Months

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2500	$ 0.37

Description

General part information

CT15 Series

Standard, Locking Natural 4.00" (101.60mm) 0.300" (7.62mm) 120 lbs (54.43 kg)
