628-037 Series

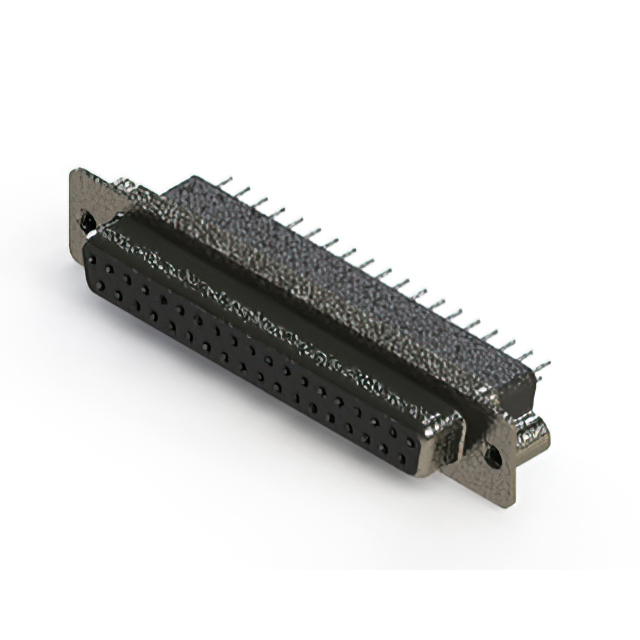

37 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-037-221-279

Color	Black
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	4
Termination	Solder

628-037 Series

...

Part	Features	Material Flammability Rating	Contact Type	Current Rating (Per Contact)	Contact Finish	Number of Positions	Shell Material	Finish	Connector Type	Connector Style	Termination	Number of Rows	Contact Finish Thickness	Mounting Type	Flange Feature	Shell Size	Connector Layout	Contact Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 628-037-621-053	Shielded	UL94 V-0	Power Signal	3 A	Gold	37 pos	Steel	Nickel Plated	Female Sockets Receptacle	D-Sub	Solder	2	30 µin	Through Hole	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-037-221-279	Shielded	UL94 V-0	Signal	3 A	Gold	37 pos	Steel	Tin Plated	Female Sockets Receptacle	D-Sub	Solder	2	0	Through Hole	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 628-037-622-243	Shielded	UL94 V-0	Power Signal	3 A	Gold	37 pos	Steel	Tin Plated	Female Sockets Receptacle	D-Sub	Solder Cup	2	30 µin	Free Hanging (In-Line)	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-037-651-076	Board Lock Shielded	UL94 V-0	Power Signal	3 A	Gold	37 pos	Steel	Nickel Plated	Female Sockets Receptacle	D-Sub	Solder	2	30 µin	Through Hole	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-037-221-271	Shielded	UL94 V-0	Signal	3 A	Gold	37 pos	Steel	Tin Plated	Female Sockets Receptacle	D-Sub	Solder	2	0	Through Hole	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 628-037-321-059	Shielded	UL94 V-0	Power Signal	3 A	Gold	37 pos	Steel	Nickel Plated	Female Sockets Receptacle	D-Sub	Solder	2		Through Hole	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-037-222-061	Shielded	UL94 V-0	Signal	3 A	Gold	37 pos	Steel	Nickel Plated	Female Sockets Receptacle	D-Sub	Solder Cup	2	0	Free Hanging (In-Line)	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 628-037-681-276	Board Lock Shielded	UL94 V-0	Power Signal	3 A	Gold	37 pos	Steel	Tin Plated	Female Sockets Receptacle	D-Sub	Solder	2	30 µin	Through Hole	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-037-321-258	Shielded	UL94 V-0	Power Signal	3 A	Gold	37 pos	Steel	Tin Plated	Female Sockets Receptacle	D-Sub	Solder	2		Through Hole	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-037-322-062	Shielded	UL94 V-0	Power Signal	3 A	Gold	37 pos	Steel	Nickel Plated	Female Sockets Receptacle	D-Sub	Solder Cup	2		Free Hanging (In-Line)	Board Side (4-40)	4	C DC	Brass	Black	-55 °C	85 °C	Polyester Thermoplastic
