628-037-222-061

Active

EDAC Inc.

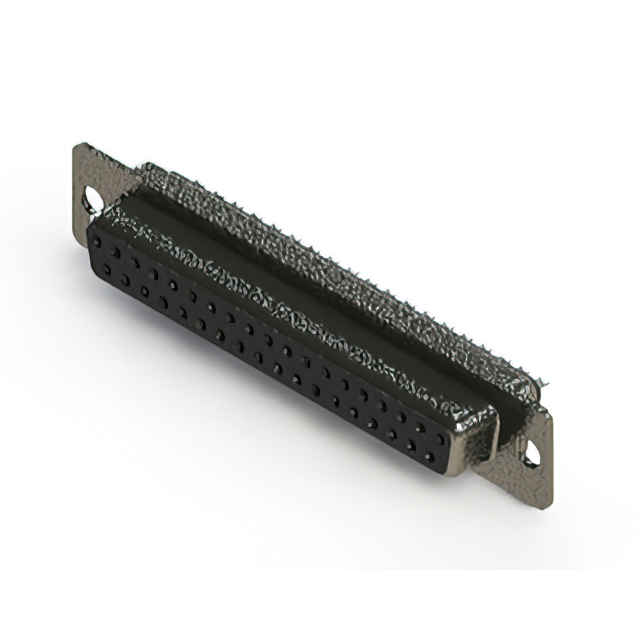

CONN D-SUB RCPT 37POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-037-222-061

Active

EDAC Inc.

CONN D-SUB RCPT 37POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-037-222-061

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)

628-037 Series

...

Part	Material Flammability Rating	Number of Rows	Contact Finish	Features	Flange Feature	Color	Termination	Contact Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions	Current Rating (Amps)	Shell Material, Finish	Shell Size, Connector Layout	Contact Finish Thickness
EDAC Inc. 628-037-621-053	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black	Solder	Signal and Power	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Through Hole	Brass	0.76 Ám	30 Áin	D-Sub	37	3 A	Nickel Plated Steel	4 (DC C)
EDAC Inc. 628-037-221-279	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black	Solder	Signal	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Through Hole	Brass			D-Sub	37	3 A		4 (DC C)	Flash
EDAC Inc. 628-037-622-243	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black		Signal and Power	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Free Hanging (In-Line)	Brass	0.76 Ám	30 Áin	D-Sub	37	3 A		4 (DC C)
EDAC Inc. 628-037-651-076	UL94 V-0	2	Gold	Board Lock Shielded	4-40 Board Side	Black	Solder	Signal and Power	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Through Hole	Brass	0.76 Ám	30 Áin	D-Sub	37	3 A	Nickel Plated Steel	4 (DC C)
EDAC Inc. 628-037-221-271	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black	Solder	Signal	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Through Hole	Brass			D-Sub	37	3 A		4 (DC C)	Flash
EDAC Inc. 628-037-321-059	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black	Solder	Signal and Power	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Through Hole	Brass			D-Sub	37	3 A	Nickel Plated Steel	4 (DC C)
EDAC Inc. 628-037-222-061	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black		Signal	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Free Hanging (In-Line)	Brass			D-Sub	37	3 A	Nickel Plated Steel	4 (DC C)	Flash
EDAC Inc. 628-037-681-276	UL94 V-0	2	Gold	Board Lock Shielded	4-40 Board Side	Black	Solder	Signal and Power	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Through Hole	Brass	0.76 Ám	30 Áin	D-Sub	37	3 A		4 (DC C)
EDAC Inc. 628-037-321-258	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black	Solder	Signal and Power	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Through Hole	Brass			D-Sub	37	3 A		4 (DC C)
EDAC Inc. 628-037-322-062	UL94 V-0	2	Gold	Shielded	4-40 Board Side	Black		Signal and Power	Polyester Thermoplastic	85 °C	-55 °C	Receptacle Female Sockets	Free Hanging (In-Line)	Brass			D-Sub	37	3 A	Nickel Plated Steel	4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.40

Description

General part information

628-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector
