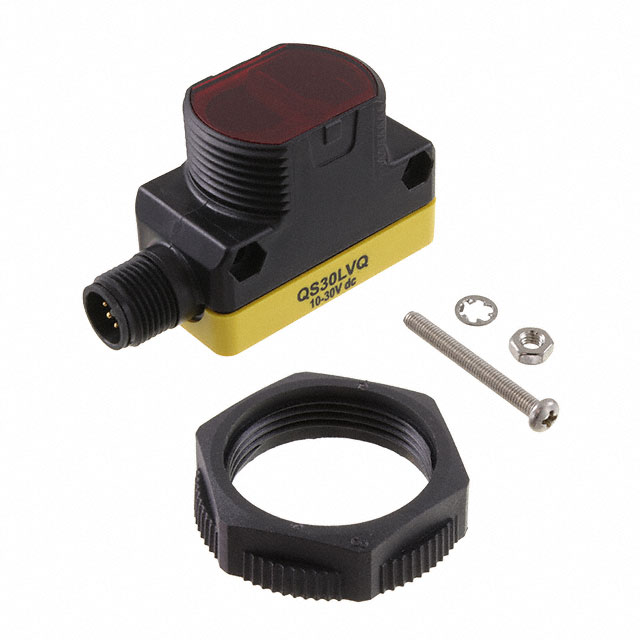

QS30LVQ

Active

BANNER ENGINEERING

WORLD-BEAM QS30 SERIES: RETROREFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

QS30LVQ

Active

BANNER ENGINEERING

WORLD-BEAM QS30 SERIES: RETROREFLECTIVE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS30LVQ

Connection Method	Connector
Ingress Protection	NEMA 6P, IP67
Light Source	Red
Light Source	630 nm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Response Time	2 ms
Sensing Distance	472.441 in
Sensing Distance	12 m
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS30L Series

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Light Source	Sensing Distance	Sensing Distance	Response Time	Connection Method	Cable Length	Cable Length	Sensing Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Sensing Distance	Adjustment Type
BANNER ENGINEERING QS30LD	-10 °C	50 °C	LED	400 mm	15.748 in	500 µs	Cable	78.74 in	2 m	Diffuse	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	NEMA 6P IEC IP67
BANNER ENGINEERING QS30LDLQ	-10 °C	50 °C	LED	800 mm	31.496 "	500 µs	Connector			Diffuse	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	NEMA 6P IEC IP67
BANNER ENGINEERING QS30LLPCQ	-10 °C	158 °F				500 µs	Connector			Polarized Retroreflective	NPN/PNP	30 VDC	10 VDC	NEMA 6P IEC IP67	70.87 in	7.87 in	20 cm	1.8 m
BANNER ENGINEERING QS30LPQPMA			Red	8 m	314.961 in	2 ms	Connector			Polarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LLPCQPMA	-10 °C	50 °C	RED (650nm)	18 m		500 µs	Connector			Polarized Retroreflective	Dark-ON/Light-ON NPN/PNP Selectable	30 VDC	10 VDC	NEMA 6P IEC IP67								708.661 "	Adjustable
BANNER ENGINEERING QS30LPQ			Red	8 m	314.961 in	2 ms	Connector			Polarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LPQ-75512			Red	8 m	314.961 in	2 ms	Connector			Polarized Retroreflective	NPN/PNP - Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LP			Red	8 m	314.961 in	2 ms	Cable	78.74 in	2 m	Polarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LVQ			Red	12 m	472.441 in	2 ms	Connector			NonPolarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LLPC	-10 °C	50 °C	RED (650nm)	18 m		500 µs	Cable	78.74 in	2 m	Polarized Retroreflective	Dark-ON/Light-ON NPN/PNP Selectable	30 VDC	10 VDC	NEMA 6P IEC IP67								708.661 "	Adjustable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 110.00
Newark	Each	1	$ 112.00

Description

General part information

QS30L Series

Retroreflective, NonPolarized Optical Sensor 472.441" (12m) NPN/PNP - Dark-ON/Light-ON
