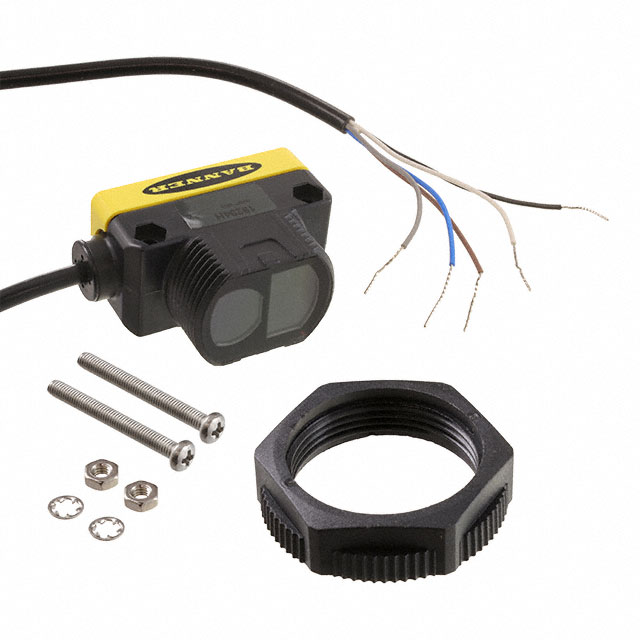

QS30LP

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS30 SERIES, RETROREFLECTIVE, 8 M, NPN / PNP, 10 V TO 30 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

QS30LP

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, QS30 SERIES, RETROREFLECTIVE, 8 M, NPN / PNP, 10 V TO 30 V

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS30LP

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IP67
Light Source	Red
Light Source	630 nm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Response Time	2 ms
Sensing Distance	314.961 in
Sensing Distance	8 m
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS30L Series

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Light Source	Sensing Distance	Sensing Distance	Response Time	Connection Method	Cable Length	Cable Length	Sensing Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Sensing Distance	Adjustment Type
BANNER ENGINEERING QS30LD	-10 °C	50 °C	LED	400 mm	15.748 in	500 µs	Cable	78.74 in	2 m	Diffuse	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	NEMA 6P IEC IP67
BANNER ENGINEERING QS30LDLQ	-10 °C	50 °C	LED	800 mm	31.496 "	500 µs	Connector			Diffuse	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	NEMA 6P IEC IP67
BANNER ENGINEERING QS30LLPCQ	-10 °C	158 °F				500 µs	Connector			Polarized Retroreflective	NPN/PNP	30 VDC	10 VDC	NEMA 6P IEC IP67	70.87 in	7.87 in	20 cm	1.8 m
BANNER ENGINEERING QS30LPQPMA			Red	8 m	314.961 in	2 ms	Connector			Polarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LLPCQPMA	-10 °C	50 °C	RED (650nm)	18 m		500 µs	Connector			Polarized Retroreflective	Dark-ON/Light-ON NPN/PNP Selectable	30 VDC	10 VDC	NEMA 6P IEC IP67								708.661 "	Adjustable
BANNER ENGINEERING QS30LPQ			Red	8 m	314.961 in	2 ms	Connector			Polarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LPQ-75512			Red	8 m	314.961 in	2 ms	Connector			Polarized Retroreflective	NPN/PNP - Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LP			Red	8 m	314.961 in	2 ms	Cable	78.74 in	2 m	Polarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LVQ			Red	12 m	472.441 in	2 ms	Connector			NonPolarized Retroreflective	NPN/PNP - Dark-ON/Light-ON	30 VDC	10 VDC	IP67 NEMA 6P					-20 C	70 °C	630 nm
BANNER ENGINEERING QS30LLPC	-10 °C	50 °C	RED (650nm)	18 m		500 µs	Cable	78.74 in	2 m	Polarized Retroreflective	Dark-ON/Light-ON NPN/PNP Selectable	30 VDC	10 VDC	NEMA 6P IEC IP67								708.661 "	Adjustable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 110.00
Newark	Each	1	$ 109.76

Description

General part information

QS30L Series

Retroreflective, Polarized Optical Sensor 314.961" (8m) NPN/PNP - Dark-ON/Light-ON
