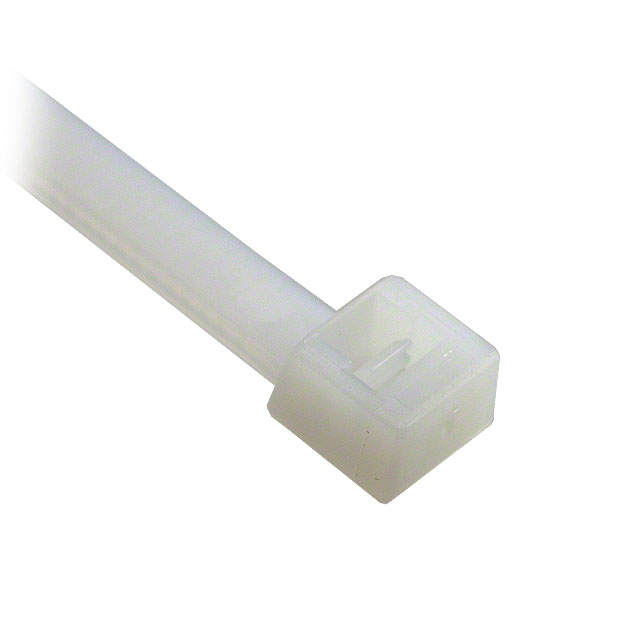

CT8NT50-M

Active

3M (TC)

CABLE TIE, STANDARD, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 193 MM, 4.6 MM, 47.5 MM, 50 LB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN +1

CT8NT50-M

Active

3M (TC)

CABLE TIE, STANDARD, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 193 MM, 4.6 MM, 47.5 MM, 50 LB

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT8NT50-M

Bundle Diameter [diameter]	47.75 mm
Bundle Diameter [diameter]	1.88 in
Color	Natural
Length - Actual	0.633 ft
Length - Actual	193 mm
Length - Actual	7.6 "
Length - Approximate	7.5 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [x]	0.18 in
Width [x]	4.57 mm
Wire/Cable Tie Type	Standard, Locking

CT8 Series

Part	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Shelf Life	Mounting Type	Tensile Strength	Tensile Strength	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Width [x]	Width [x]	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Wire/Cable Tie Type	Features	Material	Length - Approximate [x]	Width [x]	Length - Actual	Length - Actual	Length - Actual	Width	Bundle Diameter	Bundle Diameter
3M (TC) CT8BK50S-C	Black	50.8 mm	2 in	8.5 in	60 Months	Mounting Hole Screw Mount	22.68 kg	50 lbs	218.44 mm	0.717 ft	8.6 "	0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6
3M (TC) CT8NT40-M	Natural	50.8 mm	2 in		60 Months	Free Hanging (In-Line)	18.14 kg	40 lbs					0.141 in	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6	9 in	3.58 mm	226.16 mm	0.742 ft	8.9 in
3M (TC) CT8BK50-C	Black	47.75 mm	1.88 in	7.5 in	60 Months	Free Hanging (In-Line)	22.68 kg	50 lbs				0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6			193 mm	0.633 ft	7.6 "
3M (TC) CT8NT50-M	Natural	47.75 mm	1.88 in	7.5 in	60 Months	Free Hanging (In-Line)	22.68 kg	50 lbs				0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6			193 mm	0.633 ft	7.6 "
3M (TC) CT8BK50S-M	Black	50.8 mm	2 in	8.5 in	60 Months	Mounting Hole Screw Mount	22.68 kg	50 lbs	218.44 mm	0.717 ft	8.6 "	0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6
3M (TC) CT8NT50S-M	Natural	50.8 mm	2 in	8.5 in	60 Months	Mounting Hole Screw Mount	22.68 kg	50 lbs	218.44 mm	0.717 ft	8.6 "	0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6
3M (TC) CT8BK120-L	Black	50.8 mm	2 in		60 Months	Free Hanging (In-Line)	54.43 kg	120 lbs				0.3 "		Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6	9 in		228.6 mm	0.75 '	9 "	7.62 mm
3M (TC) CT8RD50-C	Red			7.5 in	60 Months	Free Hanging (In-Line)	22.68 kg	50 lbs				0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6			193 mm	0.633 ft	7.6 "		47.5 mm	1.87 in
3M (TC) CT8NT40-C	Natural	50.8 mm	2 in		60 Months	Free Hanging (In-Line)	18.14 kg	40 lbs					0.141 in	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6	9 in	3.58 mm	226.16 mm	0.742 ft	8.9 in
3M (TC) CT8BK18-C	Black	50.8 mm	2 in	8 in	60 Months	Free Hanging (In-Line)	8.16 kg	18 lbs	205.74 mm	0.675 '	8.1 "	0.1 "	2.54 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.07
		2000	$ 0.07

Description

General part information

CT8 Series

Standard, Locking Natural 1.88" (47.75mm) 0.180" (4.57mm) 50 lbs (22.68 kg)

Documents

Technical documentation and resources

Datasheet

Manufacturer Catalogue EN

Datasheet

Technical Data Sheet EN

Datasheet
