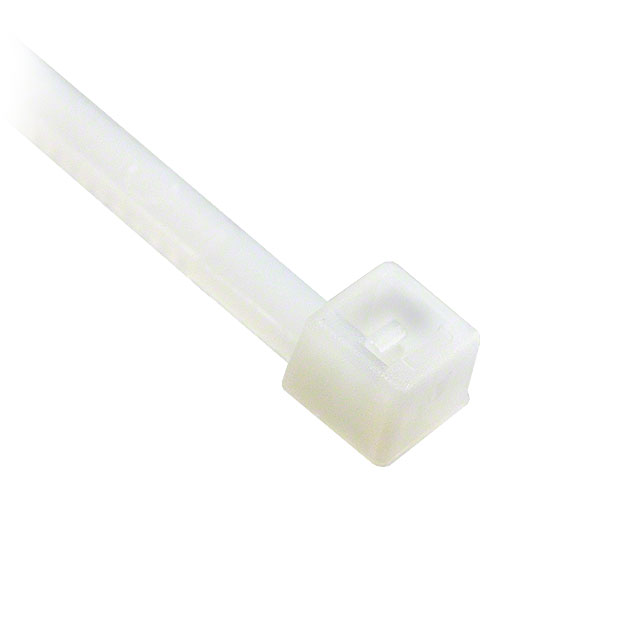

CT8NT40-M

Active

3M (TC)

CBL TIE LOCKING NAT 40LBS 8.9"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT8NT40-M

Active

3M (TC)

CBL TIE LOCKING NAT 40LBS 8.9"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT8NT40-M

Bundle Diameter [diameter]	50.8 mm
Bundle Diameter [diameter]	2 in
Color	Natural
Length - Actual	226.16 mm
Length - Actual	0.742 ft
Length - Actual	8.9 in
Length - Approximate [x]	9 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tensile Strength	40 lbs
Tensile Strength	18.14 kg
Width [x]	3.58 mm
Width [x]	0.141 in
Wire/Cable Tie Type	Standard, Locking

CT8 Series

Part	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Approximate	Shelf Life	Mounting Type	Tensile Strength	Tensile Strength	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Width [x]	Width [x]	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Wire/Cable Tie Type	Features	Material	Length - Approximate [x]	Width [x]	Length - Actual	Length - Actual	Length - Actual	Width	Bundle Diameter	Bundle Diameter
3M (TC) CT8BK50S-C	Black	50.8 mm	2 in	8.5 in	60 Months	Mounting Hole Screw Mount	22.68 kg	50 lbs	218.44 mm	0.717 ft	8.6 "	0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6
3M (TC) CT8NT40-M	Natural	50.8 mm	2 in		60 Months	Free Hanging (In-Line)	18.14 kg	40 lbs					0.141 in	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6	9 in	3.58 mm	226.16 mm	0.742 ft	8.9 in
3M (TC) CT8BK50-C	Black	47.75 mm	1.88 in	7.5 in	60 Months	Free Hanging (In-Line)	22.68 kg	50 lbs				0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6			193 mm	0.633 ft	7.6 "
3M (TC) CT8NT50-M	Natural	47.75 mm	1.88 in	7.5 in	60 Months	Free Hanging (In-Line)	22.68 kg	50 lbs				0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6			193 mm	0.633 ft	7.6 "
3M (TC) CT8BK50S-M	Black	50.8 mm	2 in	8.5 in	60 Months	Mounting Hole Screw Mount	22.68 kg	50 lbs	218.44 mm	0.717 ft	8.6 "	0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6
3M (TC) CT8NT50S-M	Natural	50.8 mm	2 in	8.5 in	60 Months	Mounting Hole Screw Mount	22.68 kg	50 lbs	218.44 mm	0.717 ft	8.6 "	0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6
3M (TC) CT8BK120-L	Black	50.8 mm	2 in		60 Months	Free Hanging (In-Line)	54.43 kg	120 lbs				0.3 "		Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6	9 in		228.6 mm	0.75 '	9 "	7.62 mm
3M (TC) CT8RD50-C	Red			7.5 in	60 Months	Free Hanging (In-Line)	22.68 kg	50 lbs				0.18 in	4.57 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6			193 mm	0.633 ft	7.6 "		47.5 mm	1.87 in
3M (TC) CT8NT40-C	Natural	50.8 mm	2 in		60 Months	Free Hanging (In-Line)	18.14 kg	40 lbs					0.141 in	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard		Polyamide (PA66) Nylon 6/6	9 in	3.58 mm	226.16 mm	0.742 ft	8.9 in
3M (TC) CT8BK18-C	Black	50.8 mm	2 in	8 in	60 Months	Free Hanging (In-Line)	8.16 kg	18 lbs	205.74 mm	0.675 '	8.1 "	0.1 "	2.54 mm	Date of Manufacture	27 °C 80 °F	10 °C	Locking Standard	UV Resistant	Polyamide (PA66) Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.08
		2000	$ 0.07
		3000	$ 0.07
		5000	$ 0.06
		7000	$ 0.06
		10000	$ 0.06
		25000	$ 0.05
		50000	$ 0.05
		100000	$ 0.05

Description

General part information

CT8 Series

Standard, Locking Natural 2.00" (50.80mm) 0.141" (3.58mm) 40 lbs (18.14 kg)
