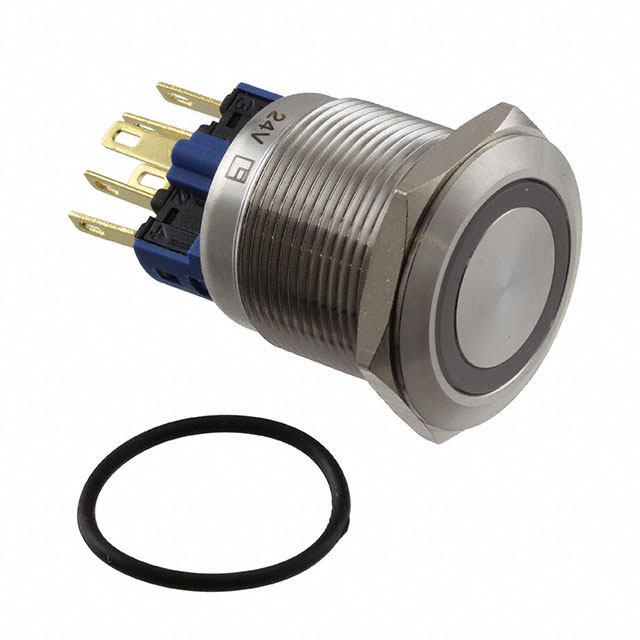

PV7F2T0SS-315

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPST NC + NO; 2A/48VDC; IP65

Deep-Dive with AI

Search across all available documentation for this part.

PV7F2T0SS-315

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPST NC + NO; 2A/48VDC; IP65

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV7F2T0SS-315

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	48 V

PV7F2 Series

Part	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Ingress Protection	Illumination Type, Color	Mounting Type	Mechanical Life	Electrical Life	Circuit	Switch Function	Actuator Marking	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Voltage Rating - DC	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch PV7F2T0SS-351	Button Flush Round	22 mm	1.8 VDC	IP65 - Dust Tight Water Resistant	LED Yellow	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-On On-Off	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2Y0SS-334	Button Flush Round	22 mm	12 VDC	IP65 - Dust Tight Water Resistant	Green LED	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-Mom On-Mom	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2Y011-314	Button Flush Round	22 mm	12 VDC	IP65 - Dust Tight Water Resistant	LED Red	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-Mom On-Mom	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Black	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2T0MM-344-M03	Button Flush Round	22 mm	12 VDC	IP65 - Dust Tight Water Resistant	Blue LED	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-On On-Off	Power Symbol	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2Y0SS-311	Button Flush Round	22 mm	1.8 VDC	IP65 - Dust Tight Water Resistant	LED Red	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-Mom On-Mom	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2Y0SS-301-M03	Button Flush Round	22 mm	2.8 VDC	IP65 - Dust Tight Water Resistant	LED White	Panel Mount Front		50000 Cycles	DPST-NO/NC	Off-Mom On-Mom		2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2T0SS-315	Button Flush Round	22 mm	24 V	IP65 - Dust Tight Water Resistant	LED Red	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-On On-Off	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2Y0SS-3L4	Button Flush Round	22 mm	12 VDC	IP65 - Dust Tight Water Resistant		Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-Mom On-Mom	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V	Blue/Orange	LED
E-Switch PV7F2T0SS-331	Button Flush Round	22 mm	2.8 VDC	IP65 - Dust Tight Water Resistant	Green LED	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-On On-Off	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V
E-Switch PV7F2T0SS-3R1	Button Flush Round	22 mm	1.8 VDC 2.8 VDC	IP65 - Dust Tight Water Resistant	Blue Green LED Red	Panel Mount Front	1000000 Cycles	50000 Cycles	SPDT	Off-On On-Off	No Marking	2 A	55 °C	-20 C	Anti-Vandal Illuminated	Silver	0.11 in	Quick Connect Solder	2.8 mm	48 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.03
		20	$ 22.73
		100	$ 19.80
TME	N/A	20	$ 37.59

Description

General part information

PV7F2 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
