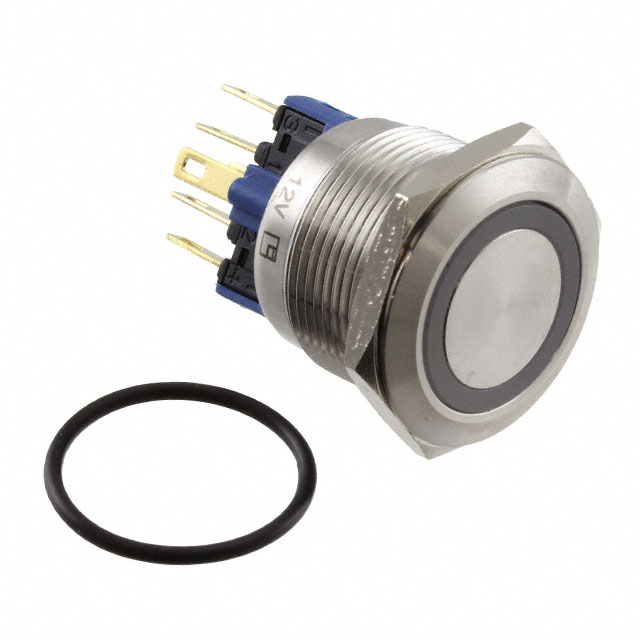

PV7F2Y0SS-334
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 48V
Deep-Dive with AI
Search across all available documentation for this part.
PV7F2Y0SS-334
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV7F2Y0SS-334 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 2 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 48 V |
PV7F2 Series
| Part | Actuator Type | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Ingress Protection | Illumination Type, Color | Mounting Type | Mechanical Life | Electrical Life | Circuit | Switch Function | Actuator Marking | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Type | Color - Actuator/Cap | Termination Style | Termination Style | Termination Style | Voltage Rating - DC | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | Button Flush Round | 22 mm | 1.8 VDC | IP65 - Dust Tight Water Resistant | LED Yellow | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-On On-Off | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||
E-Switch | Button Flush Round | 22 mm | 12 VDC | IP65 - Dust Tight Water Resistant | Green LED | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-Mom On-Mom | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||
E-Switch | Button Flush Round | 22 mm | 12 VDC | IP65 - Dust Tight Water Resistant | LED Red | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-Mom On-Mom | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Black | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||
E-Switch | Button Flush Round | 22 mm | 12 VDC | IP65 - Dust Tight Water Resistant | Blue LED | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-On On-Off | Power Symbol | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||
E-Switch | Button Flush Round | 22 mm | 1.8 VDC | IP65 - Dust Tight Water Resistant | LED Red | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-Mom On-Mom | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||
E-Switch | Button Flush Round | 22 mm | 2.8 VDC | IP65 - Dust Tight Water Resistant | LED White | Panel Mount Front | 50000 Cycles | DPST-NO/NC | Off-Mom On-Mom | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||||
E-Switch | Button Flush Round | 22 mm | 24 V | IP65 - Dust Tight Water Resistant | LED Red | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-On On-Off | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||
E-Switch | Button Flush Round | 22 mm | 12 VDC | IP65 - Dust Tight Water Resistant | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-Mom On-Mom | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | Blue/Orange | LED | |
E-Switch | Button Flush Round | 22 mm | 2.8 VDC | IP65 - Dust Tight Water Resistant | Green LED | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-On On-Off | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V | ||
E-Switch | Button Flush Round | 22 mm | 1.8 VDC 2.8 VDC | IP65 - Dust Tight Water Resistant | Blue Green LED Red | Panel Mount Front | 1000000 Cycles | 50000 Cycles | SPDT | Off-On On-Off | No Marking | 2 A | 55 °C | -20 C | Anti-Vandal Illuminated | Silver | 0.11 in | Quick Connect Solder | 2.8 mm | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.54 | |
| 20 | $ 20.47 | |||
| 40 | $ 18.51 | |||
| 100 | $ 17.82 | |||
| 260 | $ 16.67 | |||
| 500 | $ 14.23 | |||
Description
General part information
PV7F2 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
