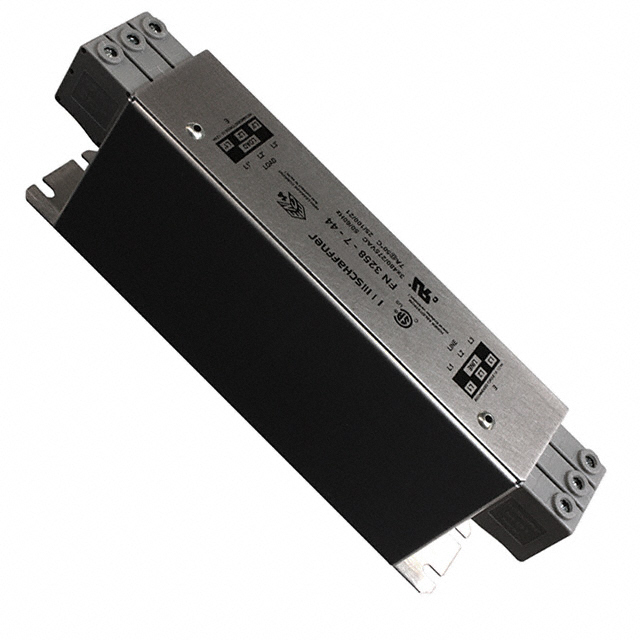

FN3258-7-44
ActiveTE Connectivity Raychem Cable Protection
FN3258-7-44
Deep-Dive with AI
Search across all available documentation for this part.
FN3258-7-44
ActiveTE Connectivity Raychem Cable Protection
FN3258-7-44
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN3258-7-44 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, ENEC, UR |
| Configuration | Single Stage |
| Current | 7 A |
| Filter Type | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Phase) | 480 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 121.01 | |
| 10 | $ 116.83 | |||
| 30 | $ 112.66 | |||
| 40 | $ 108.66 | |||
Description
General part information
Schaffner FN3258 Series
7 A 3-Phase Filter, Terminal Block Input, Terminal Block Output, Three Phase, 480 VAC, Chassis Mount, Schaffner FN3258
Documents
Technical documentation and resources
