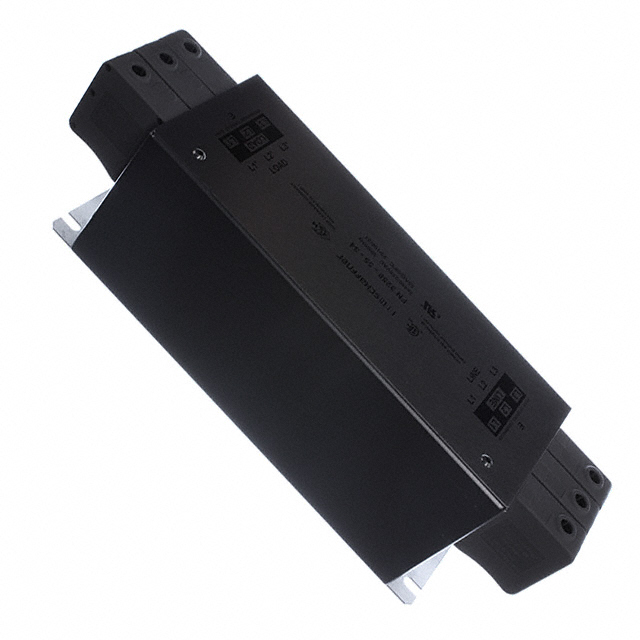

FN3258-55-34

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 55A CHASSIS MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN3258-55-34

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 55A CHASSIS MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN3258-55-34

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	55 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V

Schaffner FN3258 Series

Part	Applications	Approval Agency	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration	Termination Style	Current	Filter Type	Voltage - Rated AC (Phase to Phase)	Operating Temperature [custom]	Mounting Type
TE Connectivity Raychem Cable Protection FN3258H-16-44	General Purpose	CSA ENEC UR	60 Hz	DC	300 V	Single Stage	Terminal Block	16 A	Three Phase (Delta)	520 V	-25 °C 100 °C	Chassis Mount
TE Connectivity Raychem Cable Protection FN3258H-100-35	General Purpose	CSA ENEC UR	60 Hz	DC	300 V	Single Stage	Terminal Block	100 A	Three Phase (Delta)	520 V	-25 °C 100 °C	Chassis Mount
TE Connectivity Raychem Cable Protection FN3258H-75-34	General Purpose	CSA ENEC UR	60 Hz	DC	300 V	Single Stage	Terminal Block	75 A	Three Phase (Delta)	520 V	-25 °C 100 °C	Chassis Mount
TE Connectivity Raychem Cable Protection FN3258H-30-33	General Purpose	CSA ENEC UR	60 Hz	DC	300 V	Single Stage	Terminal Block	30 A	Three Phase (Delta)	520 V	-25 °C 100 °C	Chassis Mount
TE Connectivity Raychem Cable Protection FN3258-30-33	General Purpose	CSA ENEC UR	60 Hz	DC		Single Stage	Terminal Block	30 A	Three Phase (Delta)	480 V	-25 °C 100 °C	Chassis Mount
TE Connectivity Raychem Cable Protection FN3258-180-40	General Purpose	CSA ENEC UR	60 Hz	DC		Single Stage	Terminal Block	180 A	Three Phase (Delta)	480 V	-25 °C 100 °C	Chassis Mount
TE Connectivity Raychem Cable Protection FN3258-55-34	General Purpose	CSA ENEC UR	60 Hz	DC		Single Stage	Terminal Block	55 A	Three Phase (Delta)	480 V	-25 °C 100 °C	Chassis Mount
TE Connectivity Raychem Cable Protection FN3258-7-44	General Purpose	CSA ENEC UR	60 Hz	DC		Single Stage	Terminal Block	7 A	Three Phase (Delta)	480 V	-25 °C 100 °C	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 309.41
		12	$ 298.74
		30	$ 288.07

Description

General part information

Schaffner FN3258 Series

Three Phase (Delta) EMC/EMI Line Filter 55 A DC ~ 60Hz Single Stage Terminal Block
