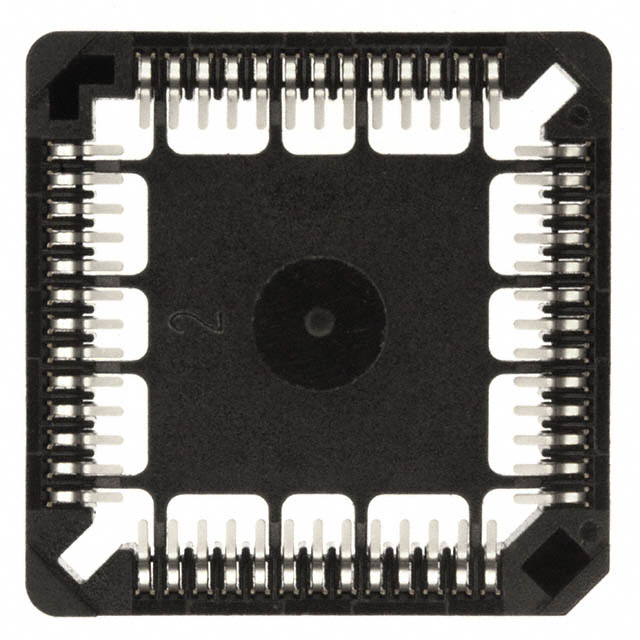

8452-21B1-RK-TR
Active3M (TC)
80000905481 8452-21B1-RK-TR=PLCC52,SMT,150SN,NOPOST,T&R
Deep-Dive with AI
Search across all available documentation for this part.
8452-21B1-RK-TR
Active3M (TC)
80000905481 8452-21B1-RK-TR=PLCC52,SMT,150SN,NOPOST,T&R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8452-21B1-RK-TR |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160 µin |
| Contact Finish Thickness - Post | 4.06 µm |
| Contact Material - Mating | Copper Alloy |
| Contact Material - Post [custom] | Copper Alloy |
| Contact Resistance | 15 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 1.27 mm |
| Pitch - Post | 0.05 in |
| Termination | Solder |
| Termination Post Length [x] | 3.35 mm |
| Termination Post Length [x] | 0.132 in |
| Type | PLCC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8452 Series
52 (4 x 13) Pos PLCC Socket Tin Surface Mount
