8452-11B1-RK-TP

Active

3M (TC)

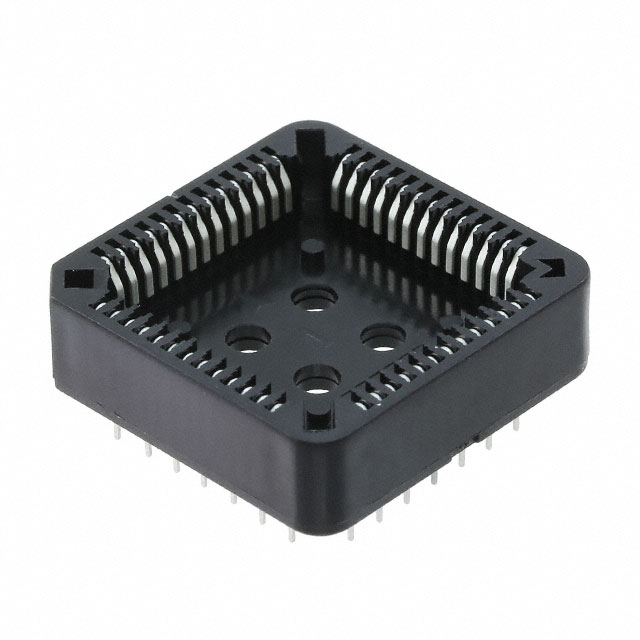

IC & COMPONENT SOCKET, 52 CONTACTS, PLCC SOCKET, 1.27 MM, 8400 SERIES, COPPER ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

8452-11B1-RK-TP

Active

3M (TC)

IC & COMPONENT SOCKET, 52 CONTACTS, PLCC SOCKET, 1.27 MM, 8400 SERIES, COPPER ALLOY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8452-11B1-RK-TP

Contact Finish - Post	Tin
Contact Finish Thickness - Post	160 µin
Contact Finish Thickness - Post	4.06 µm
Contact Material - Mating	Copper Alloy
Contact Material - Post [custom]	Copper Alloy
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	1.27 mm
Pitch - Post	0.05 in
Termination	Solder
Termination Post Length [x]	3.35 mm
Termination Post Length [x]	0.132 in
Type	PLCC

8452 Series

Part	Current Rating (Amps)	Termination Post Length [x]	Termination Post Length [x]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Housing Material	Mounting Type	Pitch - Post	Pitch - Post	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Contact Material - Mating	Contact Resistance
3M (TC) 8452-11B1-RK-TP	1 A	3.35 mm	0.132 in	Solder	160 µin	4.06 µm	Closed Frame	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	1.27 mm	0.05 in	PLCC	-40 °C	105 ░C	Copper Alloy	0.05 in	1.27 mm	UL94 V-0	Tin	Copper Alloy
3M (TC) 8452-21B1-RK-TR	1 A	3.35 mm	0.132 in	Solder	160 µin	4.06 µm	Closed Frame	Polybutylene Terephthalate (PBT) Glass Filled	Surface Mount	1.27 mm	0.05 in	PLCC	-40 °C	105 ░C	Copper Alloy	0.05 in	1.27 mm	UL94 V-0	Tin	Copper Alloy	15 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	49	$ 2.05
Digikey	Tube	1	$ 2.69
		23	$ 2.34
		46	$ 2.19
		115	$ 2.09
		253	$ 1.89
		506	$ 1.74
		1012	$ 1.50
		2507	$ 1.40

Description

General part information

8452 Series

The 8452-11B1-RK-TP is a 52-way 4-row Chip Carrier Socket with tin-plated copper alloy contacts. This 8400 series low profile PLCC socket comes with glass filled polyester (PBT) insulation and is compatible with automated loading equipment. Open top design allows unrestricted air flow. It accepts chip carriers conforming to JEDEC outline MO-047 for square and MO-052 for rectangular.
