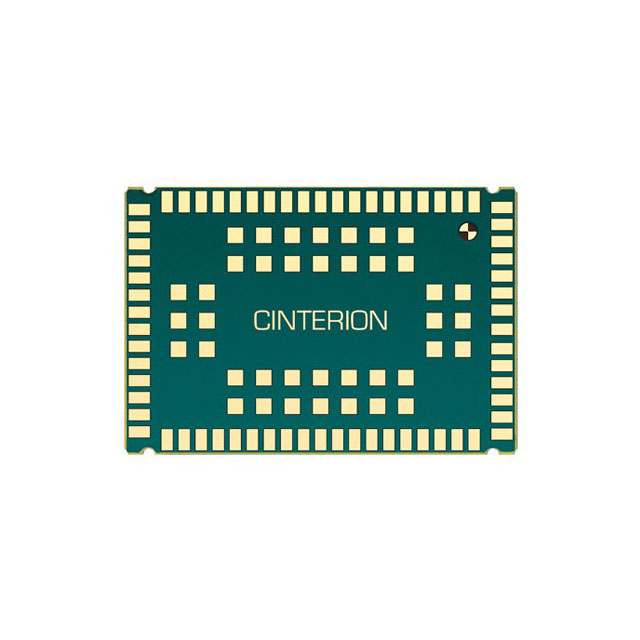

ENS22-C REL.1

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular LTE CAT.NB Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz Antenna Not Included Surface Mount

Technical documentation and resources

Specification	ENS22-C REL.1	ENS22 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Contents	-	Board(s)
Data Rate	250 KBd	250 KBd
Frequency	1800 MHz, 900 MHz, 800 MHz, 850 MHz, 700 MHz	700 - 1800 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	106-BLGA Module	106-BLGA Module
Power - Output	23 dBmW	23 dBmW
Protocol	LTE CAT.NB	LTE CAT.NB
RF Family/Standard	Cellular	Cellular
Serial Interfaces	UART, USB	UART, USB
Supplied Contents	-	Board(s)
Utilized IC / Part	Hi2115	Hi2115, EVAL-DSB Adapter, DSB75, DSB-Mini
Voltage - Supply [Max]	4.2 V	4.2 V
Voltage - Supply [Min]	2.8 V	2.8 V

Part	Frequency	Supplied Contents	Data Rate	Serial Interfaces	RF Family/Standard	Utilized IC / Part	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Protocol	Power - Output	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Contents
Telit Cinterion DEVKIT ENS22-E NB-IOT	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz	Board(s)
Telit Cinterion ENS22-C REL.1	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz		250 KBd	UART, USB	Cellular	Hi2115	Antenna Not Included	85 °C	-40 °C	Surface Mount	LTE CAT.NB	23 dBmW	106-BLGA Module	4.2 V	2.8 V
Telit Cinterion EVAL ENS22-C REL.1	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz					DSB-Mini, DSB75, EVAL-DSB Adapter										Board(s)
