L130-2790002011001

Active

Lumileds

LED LUXEON WARM WHT 2700K 3020

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LUXEON 3020 Assembly, Handling +1

L130-2790002011001

Active

Lumileds

LED LUXEON WARM WHT 2700K 3020

Deep-Dive with AI

DocumentsDatasheet LUXEON 3020 Assembly, Handling +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.43
	Digi-Reel®	1	$ 0.43
	Tape & Reel (TR)	40000	$ 0.08
		50000	$ 0.07
		125000	$ 0.07

Description

General part information

L130 Series

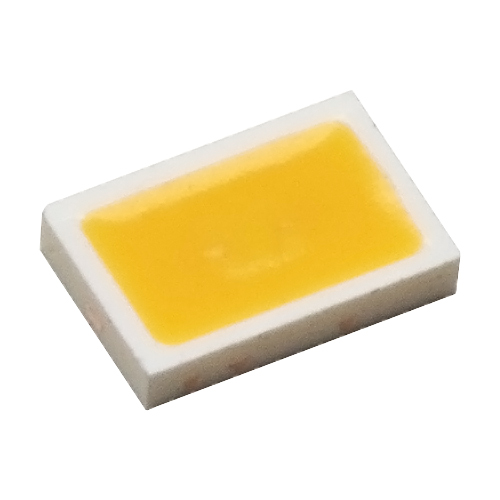

LED Lighting LUXEON 3020 White, Warm 2700K 3.05V 120mA 1208 (3020 Metric)

Documents

Technical documentation and resources

Datasheet

LUXEON 3020 Assembly, Handling

Datasheet

LUXEON 3020 Prod Brief

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L130-2790002011001	L130 Series

CCT (K)	2700 K	2200 - 10000 K
Color	White, Warm	Cool, White, Warm, Neutral
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	240 mA	30 - 480 mA
Current - Test	120 mA	17 - 120 mA
Flux @ 25°C, Current - Test	41 lm	17 - 134 lm
Flux @ 25C, Current - Test	-	25 lm
Flux @ 85°C, Current - Test	-	92 - 117 lm
Height - Seated (Max)	-	0.03 - 0.033 in
Height - Seated (Max)	-	0.76 - 0.83 mm
Height - Seated (Max) [Max]	0.024 in	0.024 - 0.028 in
Height - Seated (Max) [Max]	0.62 mm	0.62 - 0.7 mm
Lumens/Watt @ Current - Test	112 lm/W	86 - 221 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1208	1212, 1206 (3216 Metric), 1208, 2-SMD, Flat Leads, 2-SMD, No Lead
Package / Case	3020 Metric	3030 Metric, 3020 Metric, 3014 Metric, 1206
Size / Dimension	-	1.4 - 3 mm
Size / Dimension [x]	3 mm	2.9 - 3 mm
Size / Dimension [x]	0.118 in	0.114 - 0.118 in
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.055 - 0.118 in
Supplier Device Package	3020	1212, 1206, 3020, 3014
Supplier Device Package	-	3030
Thermal Resistance of Package	-	10 - 13 °C/W
Thermal Resistance of Package	-	12 - 23 °C/W
Thermal Resistance of Package [custom]	90 °C/W	90 °C/W
Viewing Angle	-	110 - 120 °
Voltage - Forward (Vf) (Typ)	3.05 V	2.7 - 48 V

L130 Series

LED LUXEON COOL WHITE 5000K 1212

...

Part	Current - Test	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Max [Max]	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Mounting Type	CCT (K)	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Thermal Resistance of Package [custom]	Size / Dimension [y]
Lumileds L130-5070HA30000B5	65 mA	221 lm/W	1212	3030 Metric	110 °	Cool, White	2.7 V	10 °C/W	0.118 in	3 mm	3 mm	0.118 in	480 mA	70	39 lm	0.03 in	0.76 mm	1212	Surface Mount	5000 K
Lumileds L130-3080003000W26	120 mA	161 lm/W	1212	3030 Metric	116 °	Warm, White	6 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	80	116 lm			1212	Surface Mount		12 °C/W	0.024 in	0.62 mm
Lumileds L130-5780HE1400005	60 mA	164 lm/W	1206 (3216 Metric)		116 °	Cool, White	2.95 V		0.118 in	3 mm	1.4 mm	0.055 in	120 mA	80	29 lm			1206	Surface Mount	5700 K		0.028 in	0.7 mm
Lumileds L130-5790001400006	60 mA	138 lm/W	1206 (3216 Metric)		116 °	Cool, White	2.95 V		0.118 in	3 mm	1.4 mm	0.055 in	120 mA	90	25 lm			1206	Surface Mount	5700 K		0.028 in	0.7 mm
Lumileds L130-4090001400006	60 mA	138 lm/W	1206 (3216 Metric)		116 °	Neutral, White	2.95 V		0.118 in	3 mm	1.4 mm	0.055 in	120 mA	90	25 lm			1206	Surface Mount	4000 K		0.028 in	0.7 mm
Lumileds L130-4070003000W21	120 mA	152 lm/W	1212	3030 Metric		Neutral, White	6.1 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	70	111 lm				Surface Mount	4000 K	12 °C/W	0.024 in	0.62 mm	3030
Lumileds L130-4080003000W26	120 mA	171 lm/W	1212	3030 Metric	116 °	Neutral, White	6 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	80	123 lm			1212	Surface Mount	4000 K	12 °C/W	0.024 in	0.62 mm
Lumileds L130-2790002011001	120 mA	112 lm/W	1208	3020 Metric		Warm, White	3.05 V		0.118 in	3 mm		0.079 in	240 mA	90	41 lm			3020	Surface Mount	2700 K		0.024 in	0.62 mm		90 °C/W	2 mm
Lumileds L130-4090003000X26	120 mA	149 lm/W	1212	3030 Metric	116 °	Neutral, White	6 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	90	107 lm	0.03 in	0.76 mm	1212	Surface Mount	4000 K	12 °C/W
Lumileds L130-3090003000X21	120 mA	139 lm/W	1206 (3216 Metric)		116 °	Warm, White	6 V		0.118 in	3 mm	1.4 mm	0.055 in	240 mA	90	100 lm			1206	Surface Mount		12 °C/W	0.028 in	0.7 mm
