L130-4070003000W21

Active

Lumileds

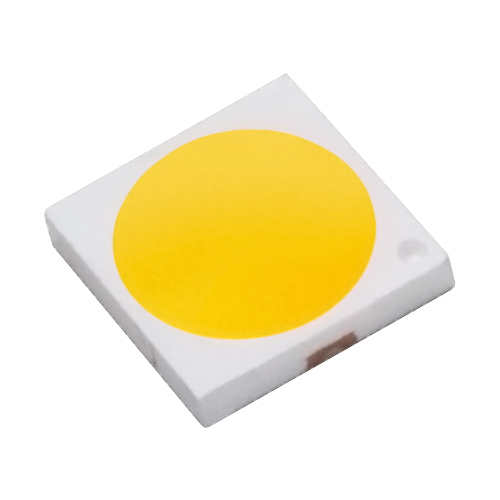

LED UNI-COLOR WHITE 111LM 4000K CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LUXEON 3030 2D Brief

L130-4070003000W21

Active

Lumileds

LED UNI-COLOR WHITE 111LM 4000K CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet LUXEON 3030 2D Brief

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.61
		10	$ 0.42
		100	$ 0.30
		500	$ 0.25
		1000	$ 0.23
		2000	$ 0.22
	Digi-Reel®	1	$ 0.61
		10	$ 0.42
		100	$ 0.30
		500	$ 0.25
		1000	$ 0.23
		2000	$ 0.22
	Tape & Reel (TR)	5000	$ 0.05
		10000	$ 0.05
		15000	$ 0.05
		25000	$ 0.05
		35000	$ 0.04
		50000	$ 0.04
		125000	$ 0.04
		250000	$ 0.04

Description

General part information

L130 Series

Industry standard package enables drop-in replacement for existing 3030 packages

1/9th micro-color binning enables tight color control

Superior luminous flux at max current for reduced LED count

Documents

Technical documentation and resources

Datasheet

LUXEON 3030 2D Brief

Datasheet

Specification	L130-4070003000W21	L130 Series

CCT (K)	4000 K	2200 - 10000 K
Color	Neutral, White	Cool, White, Warm, Neutral
CRI (Color Rendering Index)	70	70 - 95
Current - Max [Max]	240 mA	30 - 480 mA
Current - Test	120 mA	17 - 120 mA
Flux @ 25°C, Current - Test	111 lm	17 - 134 lm
Flux @ 25C, Current - Test	-	25 lm
Flux @ 85°C, Current - Test	-	92 - 117 lm
Height - Seated (Max)	-	0.03 - 0.033 in
Height - Seated (Max)	-	0.76 - 0.83 mm
Height - Seated (Max) [Max]	0.024 in	0.024 - 0.028 in
Height - Seated (Max) [Max]	0.62 mm	0.62 - 0.7 mm
Lumens/Watt @ Current - Test	152 lm/W	86 - 221 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212, 1206 (3216 Metric), 1208, 2-SMD, Flat Leads, 2-SMD, No Lead
Package / Case	3030 Metric	3030 Metric, 3020 Metric, 3014 Metric, 1206
Size / Dimension	-	2 mm
Size / Dimension [x]	0.118 in	0.114 - 0.118 in
Size / Dimension [x]	3 mm	2.9 - 3 mm
Size / Dimension [y]	3 mm	1.4 - 3 mm
Size / Dimension [y]	0.118 in	0.055 - 0.118 in
Supplier Device Package	3030	3030
Supplier Device Package	-	1212, 1206, 3020, 3014
Thermal Resistance of Package	-	10 - 13 °C/W
Thermal Resistance of Package	-	90 °C/W
Thermal Resistance of Package [custom]	12 °C/W	12 - 23 °C/W
Viewing Angle	-	110 - 120 °
Voltage - Forward (Vf) (Typ)	6.1 V	2.7 - 48 V

Part

Current - Test

Lumens/Watt @ Current - Test

Package / Case

Viewing Angle

Color

Voltage - Forward (Vf) (Typ)

Thermal Resistance of Package [diameter]

Size / Dimension [x]

Size / Dimension [y]

Current - Max [Max]

CRI (Color Rendering Index)

Flux @ 25°C, Current - Test

Height - Seated (Max) [Max] [z]

Supplier Device Package

Mounting Type

CCT (K)

Thermal Resistance of Package [custom]

Height - Seated (Max) [Max]

Supplier Device Package

Thermal Resistance of Package [custom]

Size / Dimension [y]

Flux @ 25C, Current - Test

Flux @ 85°C, Current - Test

Lumileds

L130-5070HA30000B5

65 mA

221 lm/W

1212

3030 Metric

110 °

Cool, White

2.7 V

10 °C/W

0.118 in

3 mm

0.118 in

480 mA

39 lm

0.03 in

0.76 mm

1212

Surface Mount

5000 K

Lumileds

L130-3080003000W26

120 mA

161 lm/W

1212

3030 Metric

116 °

Warm, White

6 V

0.118 in

3 mm

0.118 in

240 mA

116 lm

1212

Surface Mount

12 °C/W

0.024 in

0.62 mm

Lumileds

L130-5780HE1400005

60 mA

164 lm/W

1206 (3216 Metric)

116 °

Cool, White

2.95 V

0.118 in

3 mm

1.4 mm

0.055 in

120 mA

29 lm

1206

Surface Mount

5700 K

0.028 in

0.7 mm

Lumileds

L130-5790001400006

60 mA

138 lm/W

1206 (3216 Metric)

116 °

Cool, White

2.95 V

0.118 in

3 mm

1.4 mm

0.055 in

120 mA

25 lm

1206

Surface Mount

5700 K

0.028 in

0.7 mm

Lumileds

L130-4090001400006

60 mA

138 lm/W

1206 (3216 Metric)

116 °

Neutral, White

2.95 V

0.118 in

3 mm

1.4 mm

0.055 in

120 mA

25 lm

1206

Surface Mount

4000 K

0.028 in

0.7 mm

Lumileds

L130-4070003000W21

120 mA

152 lm/W

1212

3030 Metric

Neutral, White

6.1 V

0.118 in

3 mm

0.118 in

240 mA

111 lm

Surface Mount

4000 K

12 °C/W

0.024 in

0.62 mm

3030

Lumileds

L130-4080003000W26

120 mA

171 lm/W

1212

3030 Metric

116 °

Neutral, White

6 V

0.118 in

3 mm

0.118 in

240 mA

123 lm

1212

Surface Mount

4000 K

12 °C/W

0.024 in

0.62 mm

Lumileds

L130-2790002011001

120 mA

112 lm/W

1208

3020 Metric

Warm, White

3.05 V

0.118 in

3 mm

0.079 in

240 mA

41 lm

3020

Surface Mount

2700 K

0.024 in

0.62 mm

90 °C/W

2 mm

Lumileds

L130-4090003000X26

120 mA

149 lm/W

1212

3030 Metric

116 °

Neutral, White

6 V

0.118 in

3 mm

0.118 in

240 mA

107 lm

0.03 in

0.76 mm

1212

Surface Mount

4000 K

12 °C/W

Lumileds

L130-3090003000X21

120 mA

139 lm/W

1206 (3216 Metric)

116 °

Warm, White

6 V

0.118 in

3 mm

1.4 mm

0.055 in

240 mA

100 lm

1206

Surface Mount

12 °C/W

0.028 in

0.7 mm

Part	Current - Test	Lumens/Watt @ Current - Test	Package / Case	Package / Case	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Max [Max]	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Mounting Type	CCT (K)	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Thermal Resistance of Package [custom]	Size / Dimension [y]
Lumileds L130-5070HA30000B5	65 mA	221 lm/W	1212	3030 Metric	110 °	Cool, White	2.7 V	10 °C/W	0.118 in	3 mm	3 mm	0.118 in	480 mA	70	39 lm	0.03 in	0.76 mm	1212	Surface Mount	5000 K
Lumileds L130-3080003000W26	120 mA	161 lm/W	1212	3030 Metric	116 °	Warm, White	6 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	80	116 lm			1212	Surface Mount		12 °C/W	0.024 in	0.62 mm
Lumileds L130-5780HE1400005	60 mA	164 lm/W	1206 (3216 Metric)		116 °	Cool, White	2.95 V		0.118 in	3 mm	1.4 mm	0.055 in	120 mA	80	29 lm			1206	Surface Mount	5700 K		0.028 in	0.7 mm
Lumileds L130-5790001400006	60 mA	138 lm/W	1206 (3216 Metric)		116 °	Cool, White	2.95 V		0.118 in	3 mm	1.4 mm	0.055 in	120 mA	90	25 lm			1206	Surface Mount	5700 K		0.028 in	0.7 mm
Lumileds L130-4090001400006	60 mA	138 lm/W	1206 (3216 Metric)		116 °	Neutral, White	2.95 V		0.118 in	3 mm	1.4 mm	0.055 in	120 mA	90	25 lm			1206	Surface Mount	4000 K		0.028 in	0.7 mm
Lumileds L130-4070003000W21	120 mA	152 lm/W	1212	3030 Metric		Neutral, White	6.1 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	70	111 lm				Surface Mount	4000 K	12 °C/W	0.024 in	0.62 mm	3030
Lumileds L130-4080003000W26	120 mA	171 lm/W	1212	3030 Metric	116 °	Neutral, White	6 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	80	123 lm			1212	Surface Mount	4000 K	12 °C/W	0.024 in	0.62 mm
Lumileds L130-2790002011001	120 mA	112 lm/W	1208	3020 Metric		Warm, White	3.05 V		0.118 in	3 mm		0.079 in	240 mA	90	41 lm			3020	Surface Mount	2700 K		0.024 in	0.62 mm		90 °C/W	2 mm
Lumileds L130-4090003000X26	120 mA	149 lm/W	1212	3030 Metric	116 °	Neutral, White	6 V		0.118 in	3 mm	3 mm	0.118 in	240 mA	90	107 lm	0.03 in	0.76 mm	1212	Surface Mount	4000 K	12 °C/W
Lumileds L130-3090003000X21	120 mA	139 lm/W	1206 (3216 Metric)		116 °	Warm, White	6 V		0.118 in	3 mm	1.4 mm	0.055 in	240 mA	90	100 lm			1206	Surface Mount		12 °C/W	0.028 in	0.7 mm
