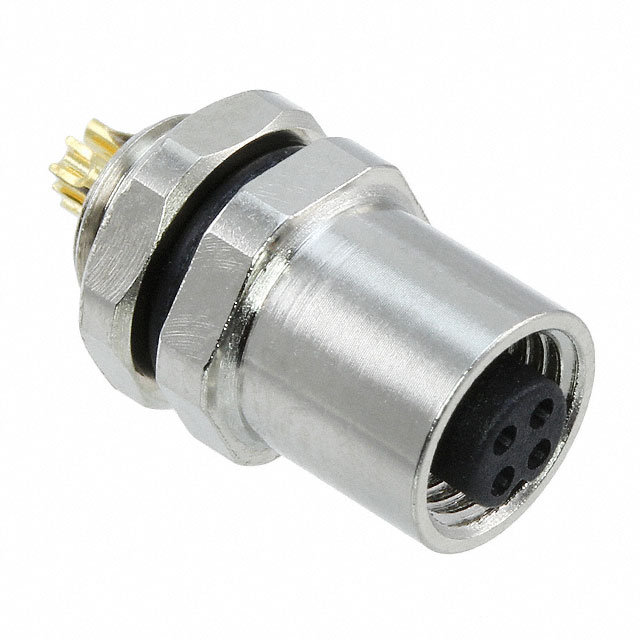

851-004-203R001 - 851-004-203R001

851-004-203R001

Active
MH Connectors

SENSOR CONNECTOR, VULCON SERIES, M5, FEMALE, 4 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetWhite Papers EN+2
851-004-203R001 - 851-004-203R001

851-004-203R001

Active
MH Connectors

SENSOR CONNECTOR, VULCON SERIES, M5, FEMALE, 4 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheetWhite Papers EN+2

Technical Specifications

Parameters and characteristics for this part

Specification851-004-203R001
ColorSilver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Contact MaterialBrass
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Rear Side Nut
Number of Positions4
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM5-4
ShieldingShielded
Voltage Rating60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.80
10$ 8.33
25$ 7.81
50$ 7.43
100$ 7.08
300$ 6.55
500$ 6.32
1000$ 6.02
NewarkEach 100$ 6.51
250$ 6.12
500$ 5.81

Description

General part information

851-004 Series

4 Position Circular Connector Plug, Female Sockets Solder Cup
