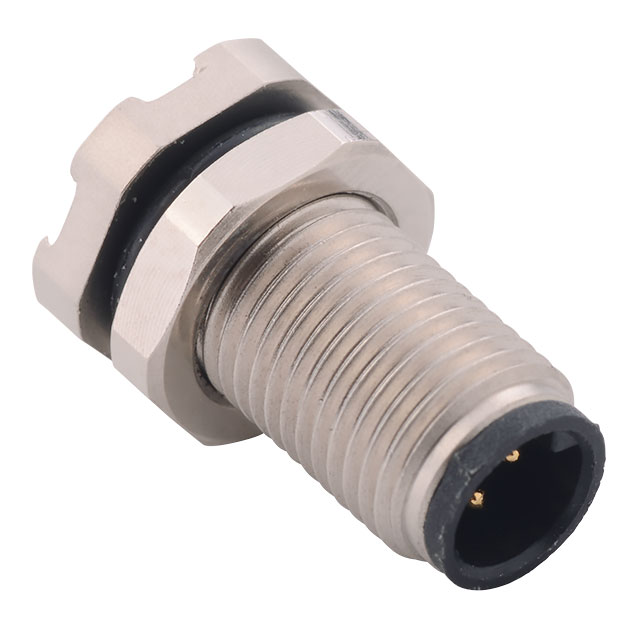

851-004-103R004 - M5 MALE 4POS

851-004-103R004

Active
MH Connectors

CIRCULAR METRIC CONNECTORS M5 4 P MS/C PNL MNT REAR 10U ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing ENMiscellaneous EN+3
851-004-103R004 - M5 MALE 4POS

851-004-103R004

Active
MH Connectors

CIRCULAR METRIC CONNECTORS M5 4 P MS/C PNL MNT REAR 10U ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDrawing ENMiscellaneous EN+3

Technical Specifications

Parameters and characteristics for this part

Specification851-004-103R004
ColorSilver
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialBrass
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Number of Positions4
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM5-4
ShieldingShielded
Voltage Rating60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 10.06
10$ 9.05
25$ 8.53
40$ 8.31
100$ 8.09
300$ 7.22
500$ 6.78
1000$ 5.99
NewarkEach 100$ 9.31
250$ 8.53
500$ 7.93
1000$ 7.45

Description

General part information

851-004 Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
