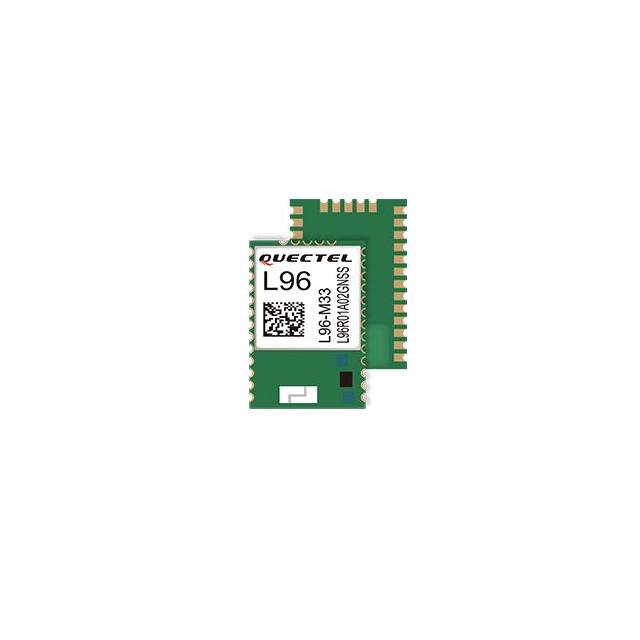

L96-M33
ActiveQuectel
RF TXRX MOD NAVIGATION CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L96-M33
ActiveQuectel
RF TXRX MOD NAVIGATION CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L96-M33 |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 115.2 kbps |
| Frequency | 1.602 GHz, 1.561 GHz, 1.575 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 31-SMD Module |
| Protocol | GPS, Galileo, GLONASS, Beidou, GNSS |
| RF Family/Standard | Navigation |
| Sensitivity | -165 dBm |
| Serial Interfaces | UART, I2C |
| Utilized IC / Part | MT3333 |
| Voltage - Supply [Max] | 4.3 V |
| Voltage - Supply [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.86 | |
| 10 | $ 11.64 | |||
| 25 | $ 10.72 | |||
| 100 | $ 9.80 | |||
| 250 | $ 9.19 | |||
| Digi-Reel® | 1 | $ 12.86 | ||
| 10 | $ 11.64 | |||
| 25 | $ 10.72 | |||
| 100 | $ 9.80 | |||
| 250 | $ 9.19 | |||
| Tape & Reel (TR) | 500 | $ 8.57 | ||
| 1000 | $ 8.15 | |||
Description
General part information
L96 Series
Navigation BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 1.561GHz, 1.575GHz, 1.602GHz Integrated, Chip Surface Mount
