L96EVB-KIT

Active

Quectel

EVAL BOARD FOR L96

Search across all available documentation for this part.

Active

Quectel

EVAL BOARD FOR L96

Technical Specifications

Parameters and characteristics for this part

Specification	L96EVB-KIT

For Use With/Related Products	L96

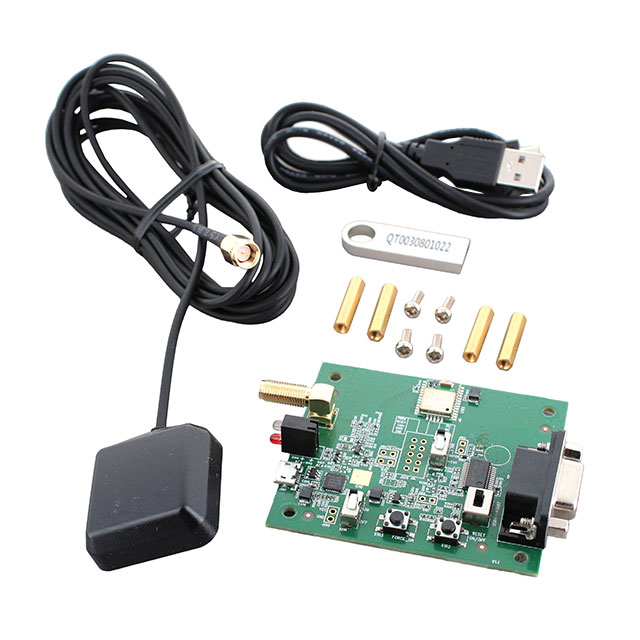

Supplied Contents	Board(s), Accessories, Cable(s)
Type	Transceiver

Part	Mounting Type	Serial Interfaces	Protocol	RF Family/Standard	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Utilized IC / Part	Frequency	Antenna Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Supplied Contents	For Use With/Related Products	Type
Quectel L96-M33	Surface Mount	I2C UART	Beidou Galileo GLONASS GNSS GPS	Navigation	31-SMD Module	2.8 V	4.3 V	-165 dBm	MT3333	1.561 GHz 1.575 GHz 1.602 GHz	Integrated Chip	115.2 kbps	85 °C	-40 °C
Quectel L96EVB-KIT															Accessories Board(s) Cable(s)	L96	Transceiver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 62.50

General part information

- L96 Transceiver Evaluation Board

Technical documentation and resources

No documents available
