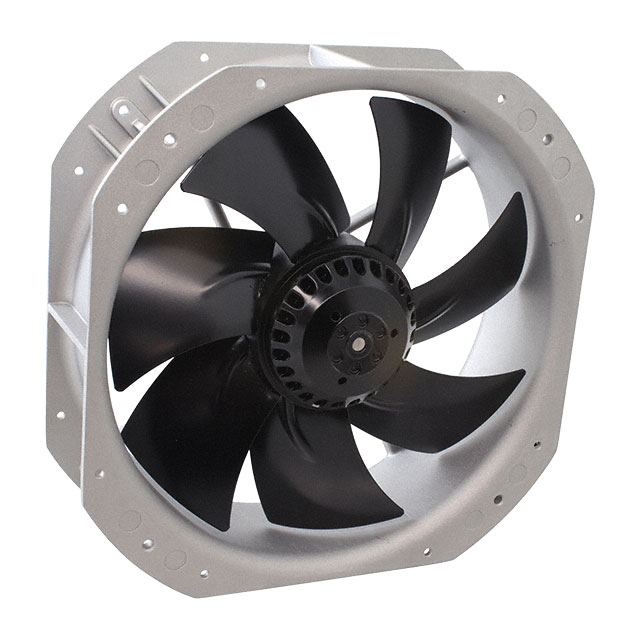

UF250BMB12-H2C2A

Active

Mechatronics Fan Group

FAN AXIAL 280X80MM 115VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UF250BMB12-H2C2A

Active

Mechatronics Fan Group

FAN AXIAL 280X80MM 115VAC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 162.45
		10	$ 146.00
		25	$ 143.94
		50	$ 134.69

Description

General part information

UF250 Series

Fan Tubeaxial 115VAC Square - 280mm L x 280mm H Ball 2 Terminals

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF250BMB12-H2C2A	UF250 Series

Air Flow	-	19.07 - 31.64 mł/min
Air Flow	-	681 - 1130 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.82 - 2.1 A
Fan Type	Tubeaxial	Motorized Impellers, Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Metal	Polyamide (PA), Nylon, Metal
Material - Frame	Metal	Aluminum, Metal
Noise	-	70 - 76 dB(A)
Operating Temperature	-	50 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	50 - 70 °C
Operating Temperature [Min]	-20 °C	-40 - -20 °C
Operating Temperature [Min]	-20 C	-40 - -20 °C
Power (Watts)	-	148 - 240 W
RPM	-	2700 RPM
Size / Dimension	-	250 - 259 mm
Size / Dimension [x]	280 mm	280 mm
Size / Dimension [y]	280 mm	280 mm
Static Pressure	-	194.3 - 772.2 Pa
Static Pressure	-	0.78 - 3.1 in H2O
Termination	2 Terminals	4 Wire Leads, 2 Terminals, 2 Wire Leads
Termination	-	3 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Weight	6.2 lbs	6.1 - 7.2 lbs
Weight	2.8 kg	2.8 - 3.3 kg
Width	-	98.1 mm
Width [y]	80 mm	80 - 131 mm

UF250 Series

IMPELLER 251X98MM 115VAC

Part	Fan Type	Voltage - Rated	RPM	Features	Width [y]	Weight	Weight	Noise	Material - Blade	Power (Watts)	Approval Agency	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Air Flow	Air Flow	Size / Dimension [diameter]	Bearing Type	Static Pressure	Static Pressure	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Termination	Width [x]
Mechatronics Fan Group UF250APA12-H1C2A	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	98 mm	3.1 kg	6.8 lbs	76 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads	2.1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	23.8 mł/min	850 CFM	251 mm	Ball	722.4 Pa	2.9 in H2O
Mechatronics Fan Group UF250BMB12-H1C2A	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL	2 Terminals	1.5 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250BMB23-H1C2A-B1	Tubeaxial	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	158 W	CE, cUL, TUV, UL		0.82 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm	3 Terminals
Mechatronics Fan Group UF250BMB23-H1C2A	Tubeaxial	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	158 W	CE, cUL, TUV, UL	2 Terminals	0.82 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250APA12-H1C4A	Motorized Impellers	115 VAC		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)		3.1 kg	6.8 lbs	76 dB(A)	Nylon, Polyamide (PA)		CE, cUL, TUV, UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	21.56 m³/min	770 CFM	250 mm	Ball	548 Pa	2.2 in H2O					98.1 mm
Mechatronics Fan Group UF250APA23-H1C2F	Motorized Impellers	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads	1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Fan Group UF250BMB12-H1C2A-B1	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL		1.5 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm	3 Terminals
Mechatronics Fan Group UF250APA12-H1C2F	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Fan Group UF250BMB12-H1C2B	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL	2 Wire Leads	1.9 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250BMB12-H2C2A	Tubeaxial	115 VAC		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs		Metal		CE, cUL, TUV, UL	2 Terminals		70 °C	-20 C	-20 °C		Metal				Ball			70 °C	280 mm	280 mm
