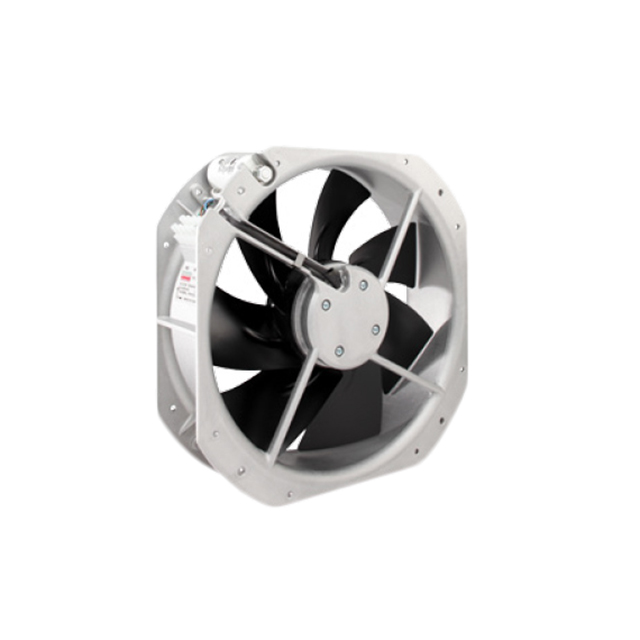

UF250BMB12-H1C2A

Active

Mechatronics Fan Group

FAN HD AXIAL 250X80MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBlowers & Impellers Part Numbering Datasheet +1

UF250BMB12-H1C2A

Active

Mechatronics Fan Group

FAN HD AXIAL 250X80MM 115VAC

Deep-Dive with AI

DocumentsBlowers & Impellers Part Numbering Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 162.45
		10	$ 146.00
		25	$ 143.94
		50	$ 134.69

Description

General part information

UF250 Series

Fan Tubeaxial 115VAC Square - 280mm L x 280mm H Ball 1130.0 CFM (31.64m³/min) 2 Terminals

Documents

Technical documentation and resources

Blowers & Impellers Part Numbering

Datasheet

AC Axial Part Numbering Guide

Datasheet

Specification	UF250BMB12-H1C2A	UF250 Series

Air Flow	1130 CFM	681 - 1130 CFM
Air Flow	31.64 m³/min	19.07 - 31.64 mł/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	1.5 A	0.82 - 2.1 A
Fan Type	Tubeaxial	Motorized Impellers, Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Metal	Polyamide (PA), Nylon, Metal
Material - Frame	Metal	Aluminum, Metal
Noise	70 dB(A)	70 - 76 dB(A)
Operating Temperature	-	50 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	50 - 70 °C
Operating Temperature [Min]	-20 °C	-40 - -20 °C
Operating Temperature [Min]	-20 C	-40 - -20 °C
Power (Watts)	148 W	148 - 240 W
RPM	2700 RPM	2700 RPM
Size / Dimension	-	250 - 259 mm
Size / Dimension [x]	280 mm	280 mm
Size / Dimension [y]	280 mm	280 mm
Static Pressure	194.3 Pa	194.3 - 772.2 Pa
Static Pressure	0.78 in H2O	0.78 - 3.1 in H2O
Termination	2 Terminals	4 Wire Leads, 2 Terminals, 2 Wire Leads
Termination	-	3 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Weight	2.8 kg	2.8 - 3.3 kg
Weight	6.1 lbs	6.1 - 7.2 lbs
Width	-	98.1 mm
Width [y]	80 mm	80 - 131 mm

Part

Fan Type

Voltage - Rated

RPM

Features

Width [y]

Weight

Noise

Material - Blade

Power (Watts)

Approval Agency

Termination

Current Rating (Amps)

Operating Temperature [Max]

Operating Temperature [Min]

Operating Temperature [Max]

Material - Frame

Air Flow

Size / Dimension [diameter]

Bearing Type

Static Pressure

Operating Temperature [Max]

Size / Dimension [x]

Size / Dimension [y]

Termination

Width [x]

Mechatronics Fan Group

UF250APA12-H1C2A

Motorized Impellers

115 VAC

2700 RPM

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

98 mm

3.1 kg

6.8 lbs

76 dB(A)

Nylon, Polyamide (PA)

240 W

CE, cUL, TUV, UL

4 Wire Leads

2.1 A

50 °C

-40 °C

50 °C

Aluminum

23.8 mł/min

850 CFM

251 mm

Ball

722.4 Pa

2.9 in H2O

Mechatronics Fan Group

UF250BMB12-H1C2A

Tubeaxial

115 VAC

2700 RPM

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

80 mm

2.8 kg

6.1 lbs

70 dB(A)

Metal

148 W

CE, cUL, TUV, UL

2 Terminals

1.5 A

70 °C

-20 C

-20 °C

Metal

31.64 m³/min

1130 CFM

Ball

194.3 Pa

0.78 in H2O

70 °C

280 mm

Mechatronics Fan Group

UF250BMB23-H1C2A-B1

Tubeaxial

230 VAC

2700 RPM

Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

80 mm

2.8 kg

6.1 lbs

70 dB(A)

Metal

158 W

CE, cUL, TUV, UL

0.82 A

70 °C

-20 C

-20 °C

Metal

31.64 m³/min

1130 CFM

Ball

194.3 Pa

0.78 in H2O

70 °C

280 mm

3 Terminals

Mechatronics Fan Group

UF250BMB23-H1C2A

Tubeaxial

230 VAC

2700 RPM

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

80 mm

2.8 kg

6.1 lbs

70 dB(A)

Metal

158 W

CE, cUL, TUV, UL

2 Terminals

0.82 A

70 °C

-20 C

-20 °C

Metal

31.64 m³/min

1130 CFM

Ball

194.3 Pa

0.78 in H2O

70 °C

280 mm

Mechatronics Fan Group

UF250APA12-H1C4A

Motorized Impellers

115 VAC

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

3.1 kg

6.8 lbs

76 dB(A)

Nylon, Polyamide (PA)

CE, cUL, TUV, UL

4 Wire Leads

50 °C

-40 °C

50 °C

Aluminum

21.56 m³/min

770 CFM

250 mm

Ball

548 Pa

2.2 in H2O

98.1 mm

Mechatronics Fan Group

UF250APA23-H1C2F

Motorized Impellers

230 VAC

2700 RPM

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

131 mm

3.3 kg

7.2 lbs

72 dB(A)

Nylon, Polyamide (PA)

240 W

CE, cUL, TUV, UL

4 Wire Leads

1 A

50 °C

-40 °C

50 °C

Aluminum

19.07 m³/min

681 CFM

259 mm

Ball

772.2 Pa

3.1 in H2O

Mechatronics Fan Group

UF250BMB12-H1C2A-B1

Tubeaxial

115 VAC

2700 RPM

Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

80 mm

2.8 kg

6.1 lbs

70 dB(A)

Metal

148 W

CE, cUL, TUV, UL

1.5 A

70 °C

-20 C

-20 °C

Metal

31.64 m³/min

1130 CFM

Ball

194.3 Pa

0.78 in H2O

70 °C

280 mm

3 Terminals

Mechatronics Fan Group

UF250APA12-H1C2F

Motorized Impellers

115 VAC

2700 RPM

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

131 mm

3.3 kg

7.2 lbs

72 dB(A)

Nylon, Polyamide (PA)

240 W

CE, cUL, TUV, UL

4 Wire Leads

50 °C

-40 °C

50 °C

Aluminum

19.07 m³/min

681 CFM

259 mm

Ball

772.2 Pa

3.1 in H2O

Mechatronics Fan Group

UF250BMB12-H1C2B

Tubeaxial

115 VAC

2700 RPM

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

80 mm

2.8 kg

6.2 lbs

70 dB(A)

Metal

148 W

CE, cUL, TUV, UL

2 Wire Leads

1.9 A

70 °C

-20 C

-20 °C

Metal

31.64 m³/min

1130 CFM

Ball

194.3 Pa

0.78 in H2O

70 °C

280 mm

Mechatronics Fan Group

UF250BMB12-H2C2A

Tubeaxial

115 VAC

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

80 mm

2.8 kg

6.2 lbs

Metal

CE, cUL, TUV, UL

2 Terminals

70 °C

-20 C

-20 °C

Metal

Ball

70 °C

280 mm

Part	Fan Type	Voltage - Rated	RPM	Features	Width [y]	Weight	Weight	Noise	Material - Blade	Power (Watts)	Approval Agency	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Air Flow	Air Flow	Size / Dimension [diameter]	Bearing Type	Static Pressure	Static Pressure	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Termination	Width [x]
Mechatronics Fan Group UF250APA12-H1C2A	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	98 mm	3.1 kg	6.8 lbs	76 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads	2.1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	23.8 mł/min	850 CFM	251 mm	Ball	722.4 Pa	2.9 in H2O
Mechatronics Fan Group UF250BMB12-H1C2A	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL	2 Terminals	1.5 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250BMB23-H1C2A-B1	Tubeaxial	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	158 W	CE, cUL, TUV, UL		0.82 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm	3 Terminals
Mechatronics Fan Group UF250BMB23-H1C2A	Tubeaxial	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	158 W	CE, cUL, TUV, UL	2 Terminals	0.82 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250APA12-H1C4A	Motorized Impellers	115 VAC		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)		3.1 kg	6.8 lbs	76 dB(A)	Nylon, Polyamide (PA)		CE, cUL, TUV, UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	21.56 m³/min	770 CFM	250 mm	Ball	548 Pa	2.2 in H2O					98.1 mm
Mechatronics Fan Group UF250APA23-H1C2F	Motorized Impellers	230 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads	1 A	50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Fan Group UF250BMB12-H1C2A-B1	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.1 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL		1.5 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm	3 Terminals
Mechatronics Fan Group UF250APA12-H1C2F	Motorized Impellers	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	131 mm	3.3 kg	7.2 lbs	72 dB(A)	Nylon, Polyamide (PA)	240 W	CE, cUL, TUV, UL	4 Wire Leads		50 °C	-40 °C	-40 °C	50 °C	Aluminum	19.07 m³/min	681 CFM	259 mm	Ball	772.2 Pa	3.1 in H2O
Mechatronics Fan Group UF250BMB12-H1C2B	Tubeaxial	115 VAC	2700 RPM	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs	70 dB(A)	Metal	148 W	CE, cUL, TUV, UL	2 Wire Leads	1.9 A	70 °C	-20 C	-20 °C		Metal	31.64 m³/min	1130 CFM		Ball	194.3 Pa	0.78 in H2O	70 °C	280 mm	280 mm
Mechatronics Fan Group UF250BMB12-H2C2A	Tubeaxial	115 VAC		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	80 mm	2.8 kg	6.2 lbs		Metal		CE, cUL, TUV, UL	2 Terminals		70 °C	-20 C	-20 °C		Metal				Ball			70 °C	280 mm	280 mm
