Q6F3BXXY24E
ActiveLED PANEL MOUNT INDICATOR, YELLOW, 24 VDC, 6 MM, 20 MA, 6 MCD, IP67
Deep-Dive with AI
Search across all available documentation for this part.
Q6F3BXXY24E
ActiveLED PANEL MOUNT INDICATOR, YELLOW, 24 VDC, 6 MM, 20 MA, 6 MCD, IP67
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q6F3BXXY24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Transparency | Diffused |
| Millicandela Rating | 8 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q6F3BXXY Series

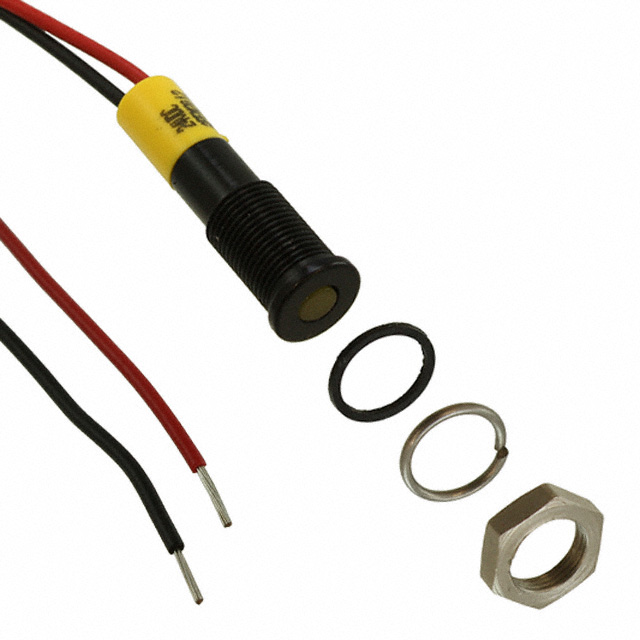

The Q6F3BXXY24E from APEM is a Q series 6mm panel mount LED indicator with black chrome plated brass bezel finish and moulded polycarbonate rear body. Typical used at process controls, professional electrical appliances, communications, radar, civil engineering vehicles, trucks, diggers, crane, trains HVAC, energy management, lifts and machine tools.
