Q6F3BXXY12E
ActiveAPEM
LED PM INDICATOR FLUSH YLW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q6F3BXXY12E
ActiveAPEM
LED PM INDICATOR FLUSH YLW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q6F3BXXY12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Yellow |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Transparency | Diffused |
| Millicandela Rating | 8 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 11.30 | |
Description
General part information
Q6F3BXXY Series

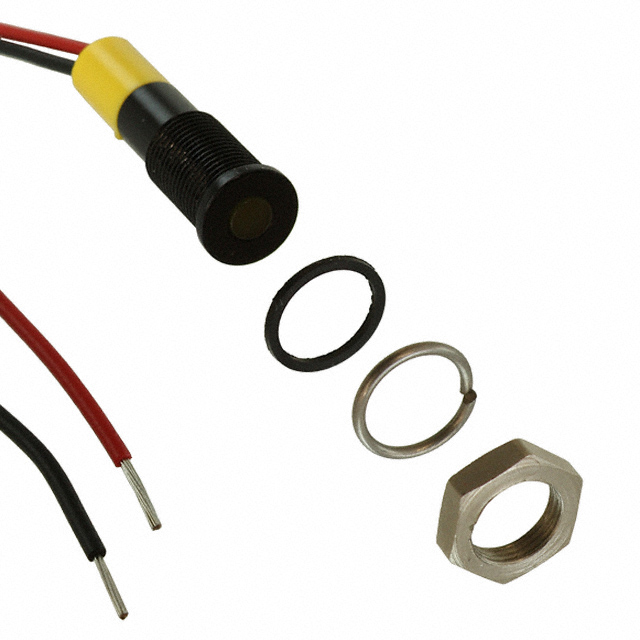

LED Panel Indicator Yellow Diffused 100° 12V 20mA Wire Leads - 7.87" (200.00mm)
Documents
Technical documentation and resources
