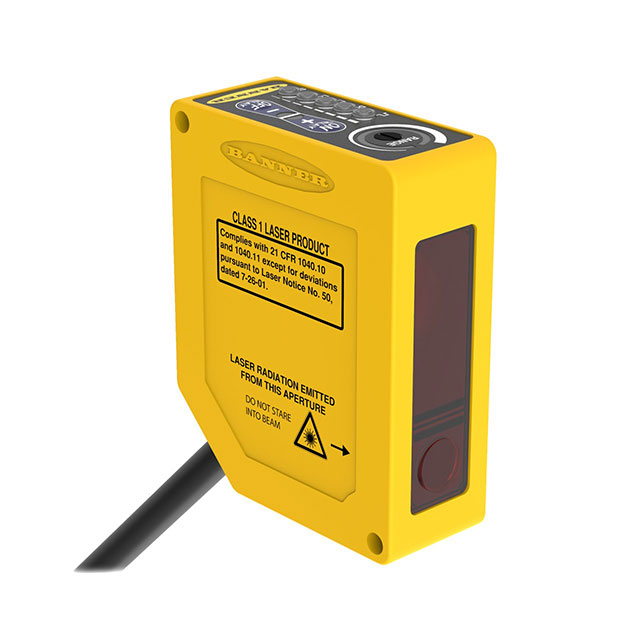

Q60BB6LAF1400Q

Active

BANNER ENGINEERING

LASER SENSOR, Q60LAF SERIES, ADJUSTABLE, 200 MM TO 1.4 M, NPN / PNP, 10 TO 30 VDC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LASER SENSOR, Q60LAF SERIES, ADJUSTABLE, 200 MM TO 1.4 M, NPN / PNP, 10 TO 30 VDC

Technical Specifications

Parameters and characteristics for this part

Specification	Q60BB6LAF1400Q

Adjustment Type	Adjustable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP - Dark-ON/Light-ON
Response Time	2 ms
Sensing Distance	39.37 in
Sensing Distance	1 m
Sensing Method	Reflective, Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Ingress Protection	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Light Source	Adjustment Type	Output Configuration	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Connection Method
BANNER ENGINEERING Q60BB6LAF1400Q	-10 °C	50 °C	NEMA 6P IEC IP67	39.37 in	1 m	30 VDC	10 VDC	Background Suppression Reflective	LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms
BANNER ENGINEERING Q60BB6AF2000			IP67 NEMA 6P			30 VDC	10 VDC	Background Suppression	Infrared LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms	2000 mm	7.87 in	20 cm	78.74 "	55 °C	-20 C	78.74 in	2 m	Cable
BANNER ENGINEERING Q60BB6LAF1400	-10 °C	50 °C	NEMA 6P IEC IP67	55.118 in	1.4 m	30 VDC	10 VDC	Background Suppression	LED	Adjustable	Dark-ON/Light-ON NPN/PNP Selectable	2 ms							78.74 in	2 m	Cable
BANNER ENGINEERING Q60BB6LAF2000Q	-10 °C	50 °C	NEMA 6P IEC IP67	78.74 "	2 m	30 VDC	10 VDC	Background Suppression Reflective	LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms
BANNER ENGINEERING Q60BB6AFV1000QPMA			IP67 NEMA 6P	39.37 in	1 m	30 VDC	10 VDC	Background Suppression	Red LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms					55 °C	-20 C			Connector
BANNER ENGINEERING Q60BB6AFV1000Q			IP67 NEMA 6P	39.37 in	1 m	30 VDC	10 VDC	Background Suppression	Red LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms					55 °C	-20 C			Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective, Background Suppression Optical Sensor 39.370" (1m) NPN/PNP - Dark-ON/Light-ON
