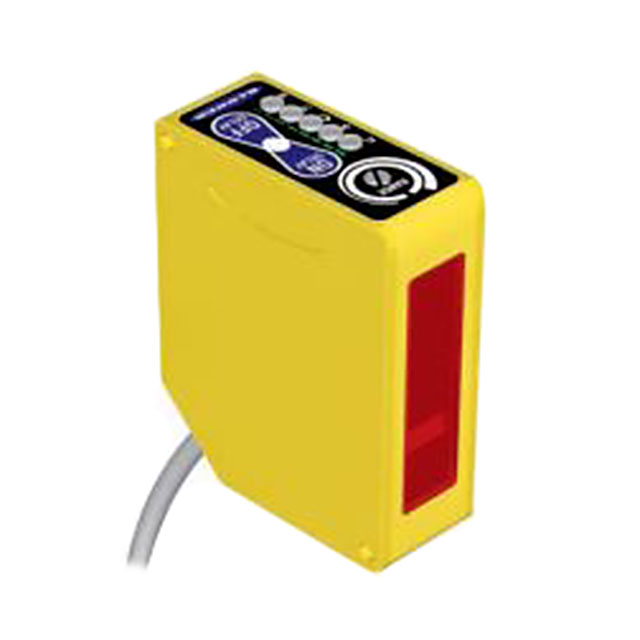

Q60BB6AF2000

Active

BANNER ENGINEERING

Q60 SERIES: ADJUSTABLE-FIELD INFRARED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

Q60 SERIES: ADJUSTABLE-FIELD INFRARED

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Ingress Protection	Sensing Distance	Sensing Distance	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Light Source	Adjustment Type	Output Configuration	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Connection Method
BANNER ENGINEERING Q60BB6LAF1400Q	-10 °C	50 °C	NEMA 6P IEC IP67	39.37 in	1 m	30 VDC	10 VDC	Background Suppression Reflective	LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms
BANNER ENGINEERING Q60BB6AF2000			IP67 NEMA 6P			30 VDC	10 VDC	Background Suppression	Infrared LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms	2000 mm	7.87 in	20 cm	78.74 "	55 °C	-20 C	78.74 in	2 m	Cable
BANNER ENGINEERING Q60BB6LAF1400	-10 °C	50 °C	NEMA 6P IEC IP67	55.118 in	1.4 m	30 VDC	10 VDC	Background Suppression	LED	Adjustable	Dark-ON/Light-ON NPN/PNP Selectable	2 ms							78.74 in	2 m	Cable
BANNER ENGINEERING Q60BB6LAF2000Q	-10 °C	50 °C	NEMA 6P IEC IP67	78.74 "	2 m	30 VDC	10 VDC	Background Suppression Reflective	LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms
BANNER ENGINEERING Q60BB6AFV1000QPMA			IP67 NEMA 6P	39.37 in	1 m	30 VDC	10 VDC	Background Suppression	Red LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms					55 °C	-20 C			Connector
BANNER ENGINEERING Q60BB6AFV1000Q			IP67 NEMA 6P	39.37 in	1 m	30 VDC	10 VDC	Background Suppression	Red LED	Adjustable	NPN/PNP - Dark-ON/Light-ON	2 ms					55 °C	-20 C			Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 229.00
Newark	Each	1	$ 236.00

General part information

Background Suppression Optical Sensor 7.87" ~ 78.74" (200mm ~ 2000mm) NPN/PNP - Dark-ON/Light-ON
