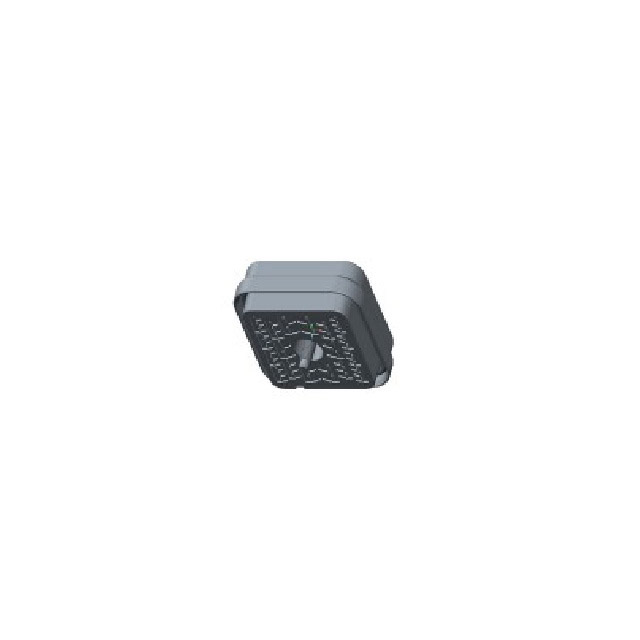

DRB16-48SAE-L018
ActiveTE Connectivity Raychem Cable Protection
PLG, 48P, BLK, E, CAP, A
Deep-Dive with AI
Search across all available documentation for this part.
DRB16-48SAE-L018
ActiveTE Connectivity Raychem Cable Protection
PLG, 48P, BLK, E, CAP, A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRB16-48SAE-L018 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Wire Router, Reduced Wire Seals, Cap (Cover) |
| Insulation Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.93 | |
| 10 | $ 27.99 | |||
| 25 | $ 26.24 | |||
| 72 | $ 24.35 | |||
| 144 | $ 23.19 | |||
| 288 | $ 22.08 | |||
Description
General part information
DEUTSCH DRB Series
48 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3.81 mm / 4.7 mm / 6.71 mm [.15 in / .185 in / .264 in] Centerline, DEUTSCH DRB
