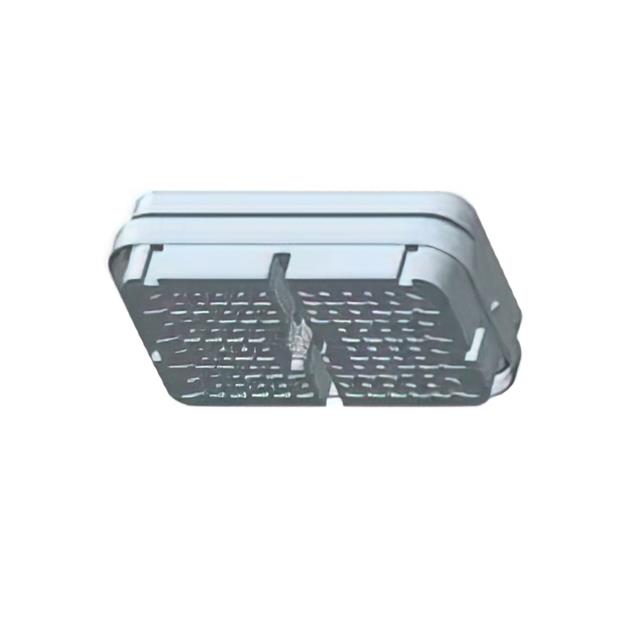

DRB16-128SAE-L018

Active

TE Connectivity Raychem Cable Protection

DRB PLUG ASM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

DRB PLUG ASM

Technical Specifications

Parameters and characteristics for this part

Specification	DRB16-128SAE-L018

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Features	Wire Router, Reduced Wire Seals, Cap (Cover)
Insulation Material	Plastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	128
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Number of Positions	Insulation Material	Contact Termination	Contact Type	Connector Type	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Note
TE Connectivity Raychem Cable Protection DRB16-128SAE-L018	128	Plastic	Crimp	Female Socket	Plug	Cap (Cover) Reduced Wire Seals Wire Router	Free Hanging (In-Line)	-55 °C	125 °C	Black
TE Connectivity Raychem Cable Protection WB-64PB
TE Connectivity Raychem Cable Protection WB-51PBR
TE Connectivity Raychem Cable Protection DRB16-102SBE-L018
TE Connectivity Raychem Cable Protection DRB16-102SAE-L018	102	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Female Socket	Plug	Sealed	Free Hanging (In-Line)	-55 °C	125 °C	Black
TE Connectivity Raychem Cable Protection WB-51SBL
TE Connectivity Raychem Cable Protection DRB16-48SAE-L018	48	Plastic	Crimp	Female Socket	Plug	Cap (Cover) Reduced Wire Seals Wire Router	Free Hanging (In-Line)	-55 °C	125 °C	Black	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

128 Rectangular Connectors - Housings Plug Black

Technical documentation and resources
