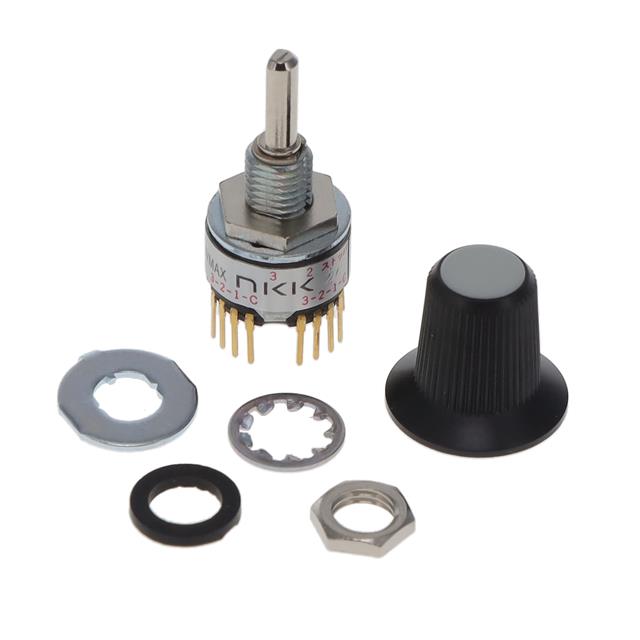

MRK403-BB

Active

NKK Switches

HALF-INCH DIAMETER PROCESS SEALED ROTARY

Search across all available documentation for this part.

Active

NKK Switches

HALF-INCH DIAMETER PROCESS SEALED ROTARY

Technical Specifications

Parameters and characteristics for this part

Specification	MRK403-BB

Actuator Length [x]	14.3 mm
Actuator Type	Knob
Angle of Throw	30 °
Circuit per Deck [custom]	4P3T
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Depth Behind Panel [z]	10.1 mm
Features	Process Sealed
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Positions [Max]	3
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Contact Material	Features	Depth Behind Panel [z]	Number of Positions [Max]	Number of Positions [Min]	Circuit per Deck [custom]	Voltage Rating - AC	Actuator Length [x]	Contact Finish	Current Rating (Amps)	Number of Decks [custom]	Mounting Type	Voltage Rating - DC	Contact Timing	Angle of Throw	Index Stops	Actuator Type [diameter]
NKK Switches MRK403-BC	0.25 in	Knob	PC Pin	Phosphor Bronze	Process Sealed	10.1 mm	3	2	4P3T	28 V	14.3 mm	Gold	0.4 VA	1	Panel Mount Through Hole	28 V	Non-Shorting	30 °	Adjustable
NKK Switches MRK403	0.25 in	Flatted	PC Pin	Phosphor Bronze	Process Sealed	10.1 mm	3	2	4P3T	28 V	10 mm	Gold	0.4 VA	1	Panel Mount Through Hole	28 V	Non-Shorting	30 °	Adjustable	3.17 mm
NKK Switches MRK403-A	0.25 in	Knob	PC Pin	Phosphor Bronze	Process Sealed	10.1 mm	3	2	4P3T	28 V	13 mm	Gold	0.4 VA	1	Panel Mount Through Hole	28 V	Non-Shorting	30 °	Adjustable
NKK Switches MRK403-BB	0.25 in	Knob	PC Pin	Phosphor Bronze	Process Sealed	10.1 mm	3	2	4P3T	28 V	14.3 mm	Gold	0.4 VA	1	Panel Mount Through Hole	28 V	Non-Shorting	30 °	Adjustable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 3 Position 4P3T 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole
