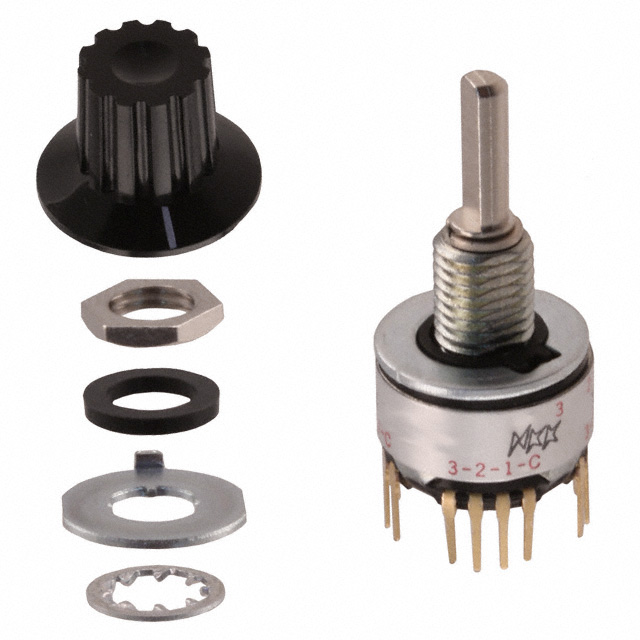

MRK403-A
ActiveNKK Switches
SWITCH ROTARY 2-3POS 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRK403-A
ActiveNKK Switches
SWITCH ROTARY 2-3POS 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRK403-A |
|---|---|
| Actuator Length [x] | 13 mm |
| Actuator Type | Knob |
| Angle of Throw | 30 ° |
| Circuit per Deck [custom] | 4P3T |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 0.4 VA |
| Depth Behind Panel [z] | 10.1 mm |
| Features | Process Sealed |
| Index Stops | Adjustable |
| Mounting Type | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 |
| Number of Positions [Max] | 3 |
| Number of Positions [Min] | 2 |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.65 | |
| 5 | $ 16.01 | |||
| 10 | $ 15.01 | |||
| 25 | $ 13.76 | |||
| 50 | $ 12.88 | |||
| 100 | $ 12.08 | |||
| 250 | $ 11.08 | |||
| 500 | $ 10.87 | |||
Description
General part information
MRK403 Series
Rotary Switch 2 ~ 3 Position 4P3T 0.4VA (AC/DC) 28 VAC Panel Mount, Through Hole
