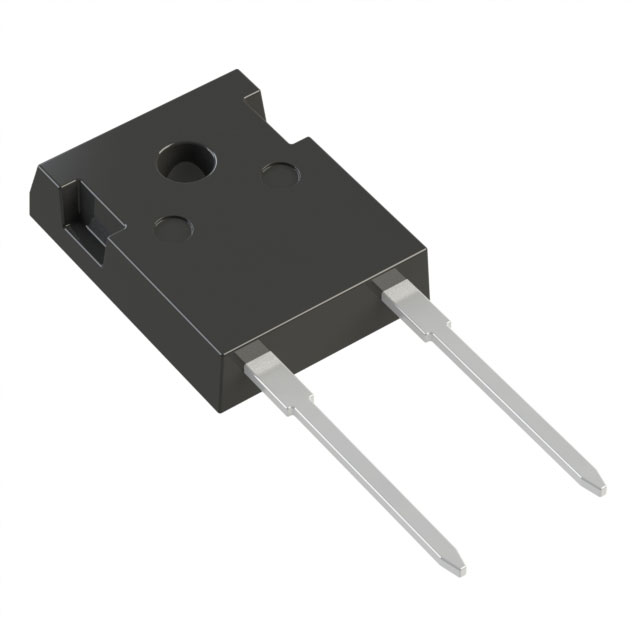

GP3D020A170B

Active

SemiQ

DIODE SIL CARB 1.7KV 67A TO247-2

Search across all available documentation for this part.

Active

SemiQ

DIODE SIL CARB 1.7KV 67A TO247-2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1700 V 67A Through Hole TO-247-2

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GP3D020A170B	GP3D020 Series

Capacitance @ Vr, F	1403 pF	1179 - 1403 pF
Current - Average Rectified (Io)	67 A	67 A
Current - Average Rectified (Io) (per Diode)	-	10 A
Current - Reverse Leakage @ Vr	80 µA	20 - 80 µA
Diode Configuration	-	1 Pair Common Cathode
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-55 C	-55 C
Package / Case	TO-247-2	TO-247-2, TO-247-3
Reverse Recovery Time (trr)	0 ns	0 ns
Speed	No Recovery Time	No Recovery Time
Supplier Device Package	TO-247-2	TO-247-2, TO-247-3
Technology	SiC (Silicon Carbide) Schottky	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1700 V	1.2 - 1700 kV
Voltage - Forward (Vf) (Max) @ If	1.65 V	1.65 V

DIODE SIL CARB 1.2KV 20A TO247-2

Part	Speed	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Technology	Supplier Device Package	Current - Reverse Leakage @ Vr	Mounting Type	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Current - Average Rectified (Io)
SemiQ GP3D020A120B	No Recovery Time	1.65 V	1.2 kV	1179 pF	SiC (Silicon Carbide) Schottky	TO-247-2	40 µA	Through Hole	TO-247-2	175 ░C	-55 C
SemiQ GP3D020A120U	No Recovery Time	1.65 V	1.2 kV		SiC (Silicon Carbide) Schottky	TO-247-3	20 µA	Through Hole	TO-247-3	175 ░C	-55 C	10 A	1 Pair Common Cathode
SemiQ GP3D020A170B	No Recovery Time	1.65 V	1700 V	1403 pF	SiC (Silicon Carbide) Schottky	TO-247-2	80 µA	Through Hole	TO-247-2	175 ░C	-55 C			67 A
