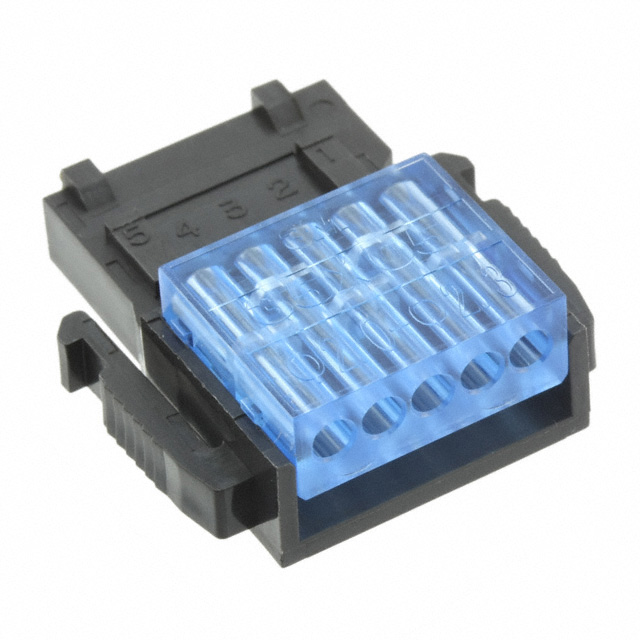

35505-6180-A00GF

Active

3M (TC)

CONN SOCKET 5POS IDC 18AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN SOCKET 5POS IDC 18AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge	Contact Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Cable Termination	Color	Wire Type	Number of Rows	Fastening Type	Contact Finish	Pitch [x]	Pitch [x]
3M (TC) 35505-6000-B0MGF	20 AWG	Female Socket	Socket	0.51 µm	20 µin	Free Hanging (In-Line)	IDC	Black	Discrete	1	Latch Lock	Gold	3 mm	0.118 in
3M (TC) 35505-6080-A00GF	18 AWG	Female Socket	Socket	0.51 µm	20 µin	Free Hanging (In-Line)	IDC	Black	Discrete	1	Latch Lock	Gold	3 mm	0.118 in
3M (TC) 35505-6180-A00GF	18 AWG	Female Socket	Socket	0.51 µm	20 µin	Free Hanging (In-Line)	IDC	Black	Discrete	1	Latch Lock	Gold	3 mm	0.118 in
3M (TC) 35505-6200-A00GF	20 AWG	Female Socket	Socket	0.51 µm	20 µin	Free Hanging (In-Line)	IDC	Black	Discrete	1	Latch Lock	Gold	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Rectangular Socket Connector IDC Gold 18 AWG
