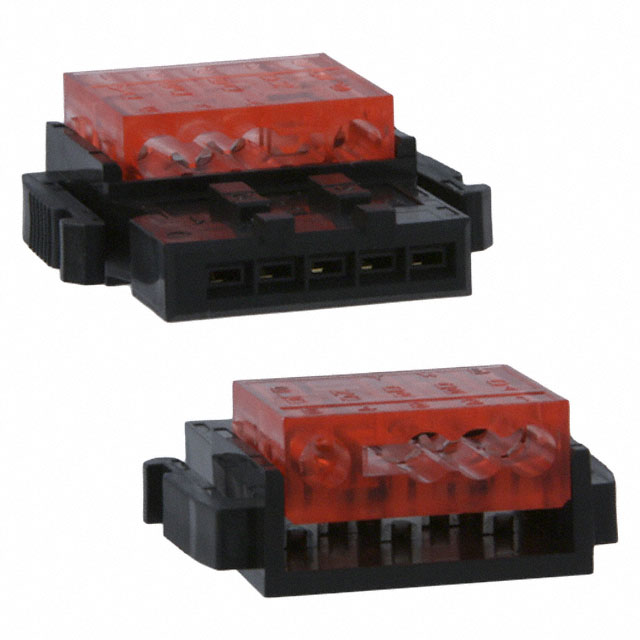

35505-6000-B0MGF
Active3M (TC)
CONN SOCKET 5POS IDC 20AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
35505-6000-B0MGF
Active3M (TC)
CONN SOCKET 5POS IDC 20AWG GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 35505-6000-B0MGF |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
| Wire Gauge | 20 AWG |
| Wire Type | Discrete |
35505 Series
| Part | Wire Gauge | Contact Type | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Cable Termination | Color | Wire Type | Number of Rows | Fastening Type | Contact Finish | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 20 AWG | Female Socket | Socket | 0.51 µm | 20 µin | Free Hanging (In-Line) | IDC | Black | Discrete | 1 | Latch Lock | Gold | 3 mm | 0.118 in |
3M (TC) | 18 AWG | Female Socket | Socket | 0.51 µm | 20 µin | Free Hanging (In-Line) | IDC | Black | Discrete | 1 | Latch Lock | Gold | 3 mm | 0.118 in |
3M (TC) | 18 AWG | Female Socket | Socket | 0.51 µm | 20 µin | Free Hanging (In-Line) | IDC | Black | Discrete | 1 | Latch Lock | Gold | 3 mm | 0.118 in |
3M (TC) | 20 AWG | Female Socket | Socket | 0.51 µm | 20 µin | Free Hanging (In-Line) | IDC | Black | Discrete | 1 | Latch Lock | Gold | 3 mm | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.25 | |
| 10 | $ 7.42 | |||
| 25 | $ 6.99 | |||
| 50 | $ 6.81 | |||
| 100 | $ 6.63 | |||
| 300 | $ 5.92 | |||
| 500 | $ 5.56 | |||
| 1000 | $ 4.91 | |||
Description
General part information
35505 Series
5 Position Rectangular Socket Connector IDC Gold 20 AWG
