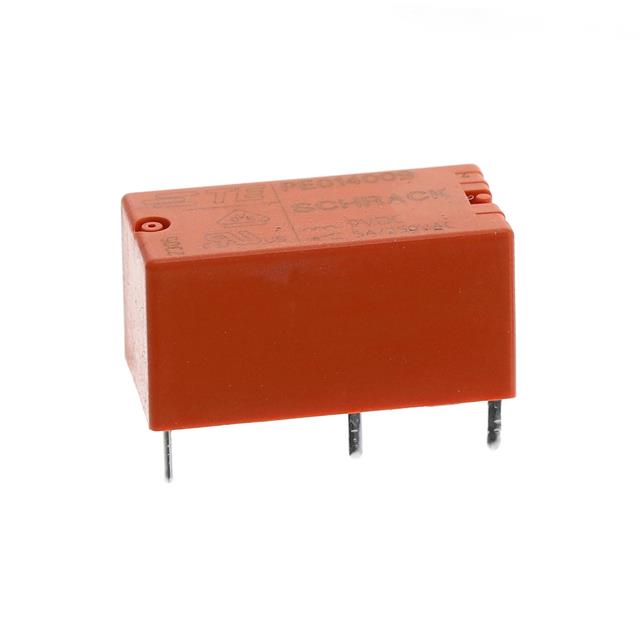

1393219-5

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1393219-5

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1393219-5	1393219 Series

Approval Agency	cURus, VDE	cURus, VDE
Coil Current	22.2 mA	4.4 - 40 mA
Coil Resistance	405 Ohms	1.545 - 685 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	9 VDC	5 - 48 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A	5 A
Load - Max Switching	2000 VA	2000 VA
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	6.8 VDC	3.8 - 36 VDC
Must Release Voltage	0.9 VDC	0.5 - 4.8 VDC
Operate Time	8 ms	8 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	8 ms	8 ms
Seal Rating	-	Sealed - Fully, Sealed - Flux Protection
Switching Voltage [Max]	400 VAC	400 VAC
Termination Style	PC Pin	PC Pin

1393219 Series

RELAY GEN PURPOSE SPDT 5A 24V

Part	Load - Max Switching	Coil Current	Relay Type	Approval Agency	Release Time	Contact Form	Contact Rating (Current)	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Seal Rating	Contact Material	Termination Style	Coil Voltage	Operate Time	Must Release Voltage	Mounting Type	Must Operate Voltage	Coil Type
TE Connectivity Potter & Brumfield Relays 2-1393219-2	2000 VA	8.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	2.73 kOhms	Sealed - Fully	Silver Nickel (AgNi)	PC Pin	24 VDC	8 ms	2.4 VDC	Through Hole	18 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE014024	2000 VA	8.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	2.73 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	24 VDC	8 ms	2.4 VDC	Through Hole	18 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE514005	2000 VA	40 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	125 Ohms	Sealed - Fully	Silver Nickel (AgNi)	PC Pin	5 VDC	8 ms	0.5 VDC	Through Hole	3.8 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE014006	2000 VA	34.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	172 Ohms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin		8 ms	0.6 VDC	Through Hole	4.5 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE014048	2000 VA	4.4 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	10.97 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	48 VDC	8 ms	4.8 VDC	Through Hole	36 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1393219-4	2000 VA	17.5 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	685 Ohms	Sealed - Flux Protection	Gold (Au), Silver Nickel (AgNi)	PC Pin	12 VDC	8 ms	1.2 VDC	Through Hole	9 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1393219-2	2000 VA	5.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	6.17 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	36 VDC	8 ms	3.6 VDC	Through Hole	27 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1393219-5	2000 VA	22.2 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	405 Ohms		Silver Nickel (AgNi)	PC Pin	9 VDC	8 ms	0.9 VDC	Through Hole	6.8 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1393219-8	2000 VA	34.9 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	172 Ohms	Sealed - Fully	Silver Nickel (AgNi)	PC Pin		8 ms	0.6 VDC	Through Hole	4.5 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1393219-8	2000 VA	11.7 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	1.545 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	18 VDC	8 ms		Through Hole		Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.33
		10	$ 5.93
		25	$ 5.27
		50	$ 5.01
		100	$ 4.75
		250	$ 4.22
		500	$ 3.95
		1000	$ 3.69

Description

General part information

1393219 Series

General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole
