PE514005

Active

TE Connectivity Potter & Brumfield Relays

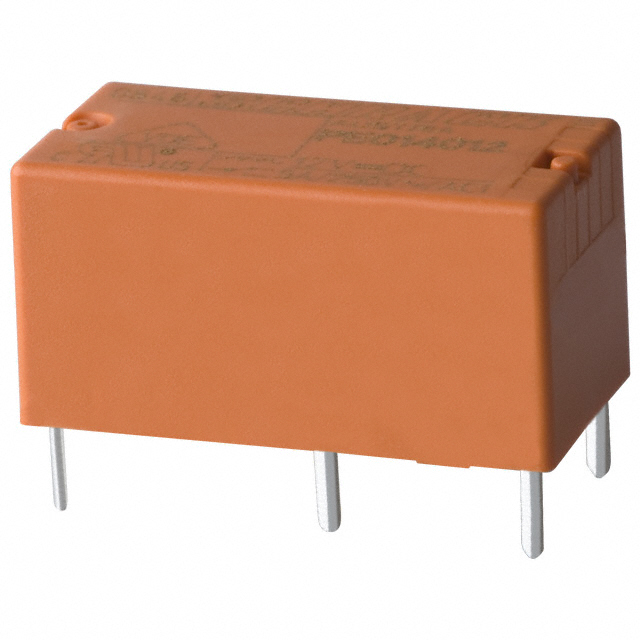

RELAY GEN PURPOSE SPDT 5A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PE514005

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 5A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE514005	1393219 Series

Approval Agency	cURus, VDE	cURus, VDE
Coil Current	40 mA	4.4 - 40 mA
Coil Resistance	125 Ohms	1.545 - 685 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	5 VDC	5 - 48 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	5 A	5 A
Load - Max Switching	2000 VA	2000 VA
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	3.8 VDC	3.8 - 36 VDC
Must Release Voltage	0.5 VDC	0.5 - 4.8 VDC
Operate Time	8 ms	8 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	8 ms	8 ms
Seal Rating	Sealed - Fully	Sealed - Fully, Sealed - Flux Protection
Switching Voltage [Max]	400 VAC	400 VAC
Termination Style	PC Pin	PC Pin

1393219 Series

RELAY GEN PURPOSE SPDT 5A 24V

Part	Load - Max Switching	Coil Current	Relay Type	Approval Agency	Release Time	Contact Form	Contact Rating (Current)	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Seal Rating	Contact Material	Termination Style	Coil Voltage	Operate Time	Must Release Voltage	Mounting Type	Must Operate Voltage	Coil Type
TE Connectivity Potter & Brumfield Relays 2-1393219-2	2000 VA	8.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	2.73 kOhms	Sealed - Fully	Silver Nickel (AgNi)	PC Pin	24 VDC	8 ms	2.4 VDC	Through Hole	18 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE014024	2000 VA	8.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	2.73 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	24 VDC	8 ms	2.4 VDC	Through Hole	18 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE514005	2000 VA	40 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	125 Ohms	Sealed - Fully	Silver Nickel (AgNi)	PC Pin	5 VDC	8 ms	0.5 VDC	Through Hole	3.8 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE014006	2000 VA	34.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	172 Ohms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin		8 ms	0.6 VDC	Through Hole	4.5 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays PE014048	2000 VA	4.4 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	10.97 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	48 VDC	8 ms	4.8 VDC	Through Hole	36 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1393219-4	2000 VA	17.5 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	685 Ohms	Sealed - Flux Protection	Gold (Au), Silver Nickel (AgNi)	PC Pin	12 VDC	8 ms	1.2 VDC	Through Hole	9 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1393219-2	2000 VA	5.8 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	6.17 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	36 VDC	8 ms	3.6 VDC	Through Hole	27 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1393219-5	2000 VA	22.2 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	405 Ohms		Silver Nickel (AgNi)	PC Pin	9 VDC	8 ms	0.9 VDC	Through Hole	6.8 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1-1393219-8	2000 VA	34.9 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	172 Ohms	Sealed - Fully	Silver Nickel (AgNi)	PC Pin		8 ms	0.6 VDC	Through Hole	4.5 VDC	Non Latching
TE Connectivity Potter & Brumfield Relays 1393219-8	2000 VA	11.7 mA	General Purpose	cURus, VDE	8 ms	SPDT (1 Form C)	5 A	400 VAC	85 °C	-40 °C	1.545 kOhms	Sealed - Flux Protection	Silver Nickel (AgNi)	PC Pin	18 VDC	8 ms		Through Hole		Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.89
		10	$ 4.27
		25	$ 4.05
		50	$ 3.89
		100	$ 3.73
		250	$ 3.54
		500	$ 3.40
		1000	$ 3.26

Description

General part information

1393219 Series

General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole

Documents

Technical documentation and resources
