R141183000

Active

Radiall USA, Inc.

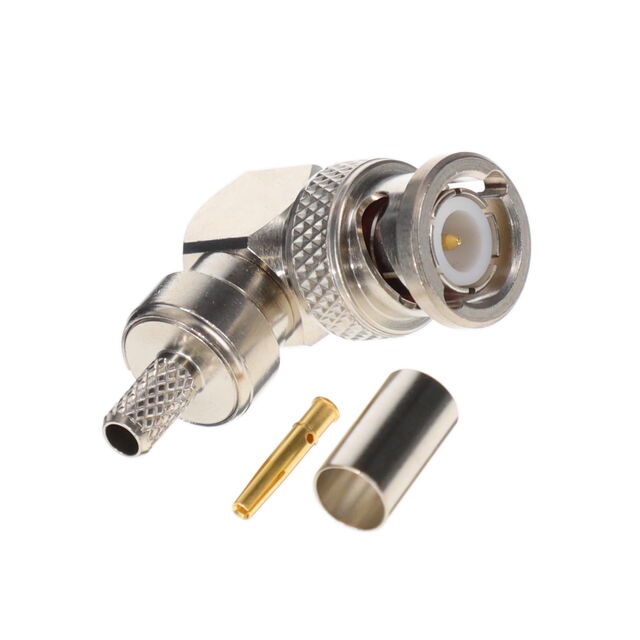

RF BNC CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

R141183000

Active

Radiall USA, Inc.

RF BNC CONNECTOR, MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R141183000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

R14118 Series

Part	Voltage Rating	Dielectric Material	Center Contact Material	Cable Group	Cable Group	Connector Style	Shield Termination	Connector Type	Impedance	Mounting Type	Body Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Number of Ports	Housing Color	Contact Termination	Frequency - Max [Max]	Fastening Type	Mating Cycles	Includes
Radiall USA, Inc. R141182161W	500 V	Polypropylene (PP)	Brass	141	RG-58	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock
Radiall USA, Inc. R141181161	335 V	Polypropylene (PP)	Brass		316 RG-174	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock	500
Radiall USA, Inc. R141182000	500 V	Polytetrafluoroethylene (PTFE)	Beryllium Copper	141	RG-58	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-65 ░C	165 °C	Nickel	1	Silver	Crimp	4 GHz	Bayonet Lock	500
Radiall USA, Inc. R141183000	500 V	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass		223 400 RG-142	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-65 ░C	165 °C	Nickel	1	Silver	Crimp	4 GHz	Bayonet Lock	500	1 Connector 1 Contact 1 Ferrule
Radiall USA, Inc. R141181161W	500 V	Polypropylene (PP)	Brass		316 RG-174	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock
Radiall USA, Inc. R141182161	500 V	Polypropylene (PP)	Brass	141	RG-58	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.62
		10	$ 17.00
		25	$ 16.12
		50	$ 15.88
		100	$ 14.01
		300	$ 13.08
		500	$ 12.80

Description

General part information

R14118 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
