R141182000

Active

Radiall USA, Inc.

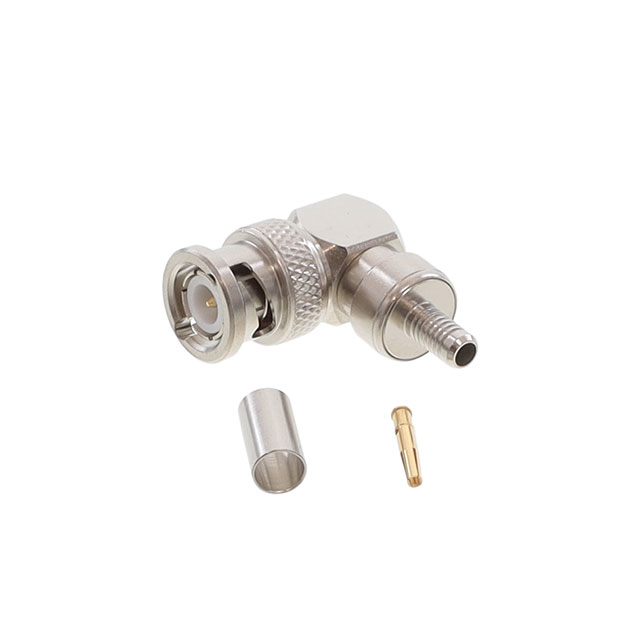

BNC / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Search across all available documentation for this part.

R141182000

Active

Radiall USA, Inc.

BNC / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R141182000

Body Finish	Nickel
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

R14118 Series

Part	Voltage Rating	Dielectric Material	Center Contact Material	Cable Group	Cable Group	Connector Style	Shield Termination	Connector Type	Impedance	Mounting Type	Body Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Number of Ports	Housing Color	Contact Termination	Frequency - Max [Max]	Fastening Type	Mating Cycles	Includes
Radiall USA, Inc. R141182161W	500 V	Polypropylene (PP)	Brass	141	RG-58	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock
Radiall USA, Inc. R141181161	335 V	Polypropylene (PP)	Brass		316 RG-174	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock	500
Radiall USA, Inc. R141182000	500 V	Polytetrafluoroethylene (PTFE)	Beryllium Copper	141	RG-58	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-65 ░C	165 °C	Nickel	1	Silver	Crimp	4 GHz	Bayonet Lock	500
Radiall USA, Inc. R141183000	500 V	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass		223 400 RG-142	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-65 ░C	165 °C	Nickel	1	Silver	Crimp	4 GHz	Bayonet Lock	500	1 Connector 1 Contact 1 Ferrule
Radiall USA, Inc. R141181161W	500 V	Polypropylene (PP)	Brass		316 RG-174	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock
Radiall USA, Inc. R141182161	500 V	Polypropylene (PP)	Brass	141	RG-58	BNC	Crimp	Male Pin Plug	50 Ohms	Free Hanging (In-Line) Right Angle	Brass	Gold	-35 °C	70 °C	Nickel	1	Silver	Crimp	1.5 GHz	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.62
		10	$ 16.14
		25	$ 15.30
		50	$ 15.08
		100	$ 13.30
		300	$ 12.41
		500	$ 12.15

Description

General part information

R14118 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
