D01-9970842

Active

Harwin Inc.

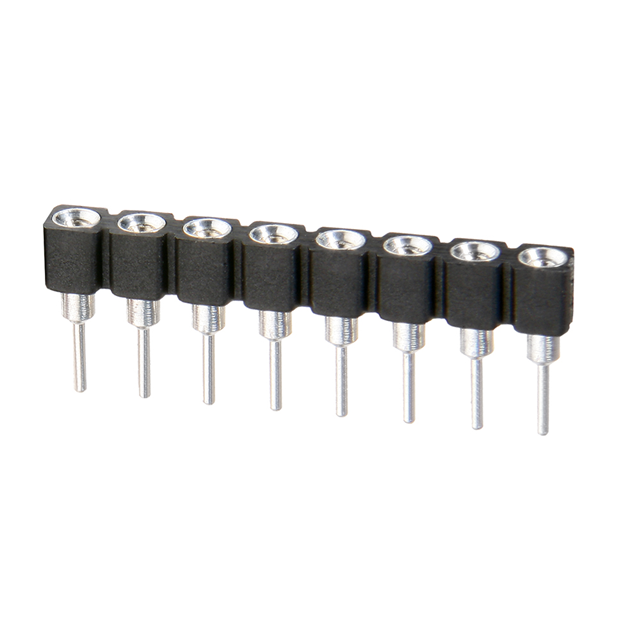

8 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Round Pin lC Sockets Spec Sheet

D01-9970842

Active

Harwin Inc.

8 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Round Pin lC Sockets Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D01-9970842	D01-997 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	196.9 µin	196.9 µin
Contact Finish Thickness - Post	5 µm	5 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Threaded
Number of Positions or Pins (Grid)	8	3 - 22
Number of Positions or Pins (Grid)	-	1 x 19, 1 x 2, 1 x 12
Number of Positions or Pins (Grid)	-	19
Number of Positions or Pins (Grid)	-	1 x 32
Number of Positions or Pins (Grid)	-	20 - 32
Number of Positions or Pins (Grid)	-	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	SIP	SIP

D01-997 Series

3 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Part	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Housing Material	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions or Pins (Grid)	Contact Material - Post [custom]	Termination Post Length	Termination Post Length	Contact Resistance	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Termination	Type	Contact Finish - Mating	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Harwin Inc. D01-9970342	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	3	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9972242	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	22	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9971142	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	11	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9971942	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A	1 x 19	19
Harwin Inc. D01-9972142	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	21	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9973242	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A			1 x 32	32
Harwin Inc. D01-9970842	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	8	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9970242	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Threaded		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A	1 x 2				2
Harwin Inc. D01-9972042	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A				20
Harwin Inc. D01-9970542	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	5	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.07
		10	$ 0.91
		100	$ 0.82
		1400	$ 0.59
		5600	$ 0.52
		11200	$ 0.49
Newark	Each	1000	$ 0.62

Description

General part information

D01-997 Series

8 (1 x 8) Pos SIP Socket Gold Through Hole

Documents

Technical documentation and resources

Datasheet

Round Pin lC Sockets Spec Sheet

Datasheet
