D01-9970342

Active

Harwin Inc.

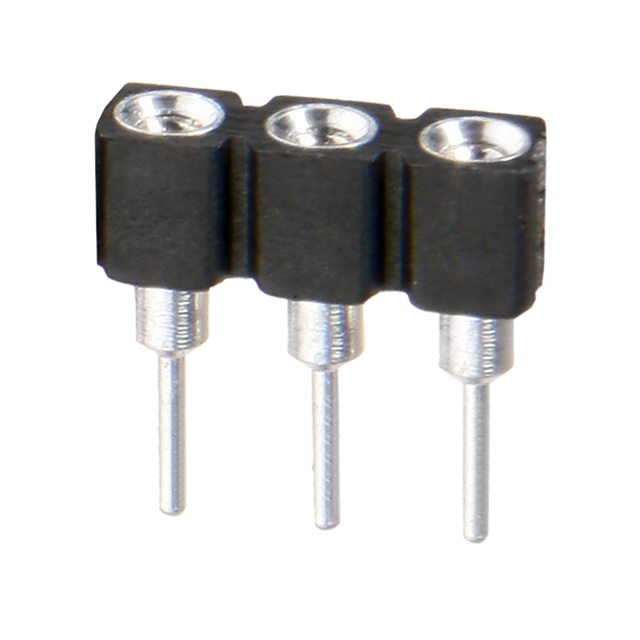

3 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRound Pin lC Sockets Spec Sheet Datasheet

D01-9970342

Active

Harwin Inc.

3 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsRound Pin lC Sockets Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.56
		10	$ 0.49
		100	$ 0.40
		4800	$ 0.25
		9600	$ 0.24
		14400	$ 0.23
Newark	Each	1000	$ 0.30

Description

General part information

D01-997 Series

3 (1 x 3) Pos SIP Socket Gold Through Hole

Documents

Technical documentation and resources

Round Pin lC Sockets Spec Sheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D01-9970342	D01-997 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	196.9 µin	196.9 µin
Contact Finish Thickness - Post	5 µm	5 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Threaded
Number of Positions or Pins (Grid)	3	3 - 22
Number of Positions or Pins (Grid)	-	1 x 19, 1 x 2, 1 x 12
Number of Positions or Pins (Grid)	-	19
Number of Positions or Pins (Grid)	-	1 x 32
Number of Positions or Pins (Grid)	-	20 - 32
Number of Positions or Pins (Grid)	-	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	SIP	SIP

D01-997 Series

3 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES

Part	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Housing Material	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions or Pins (Grid)	Contact Material - Post [custom]	Termination Post Length	Termination Post Length	Contact Resistance	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Pitch - Post	Pitch - Post	Termination	Type	Contact Finish - Mating	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Harwin Inc. D01-9970342	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	3	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9972242	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	22	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9971142	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	11	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9971942	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A	1 x 19	19
Harwin Inc. D01-9972142	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	21	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9973242	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A			1 x 32	32
Harwin Inc. D01-9970842	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	8	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
Harwin Inc. D01-9970242	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Threaded		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A	1 x 2				2
Harwin Inc. D01-9972042	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole		Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A				20
Harwin Inc. D01-9970542	Tin	0.1 in	2.54 mm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Beryllium Copper	-55 °C	125 °C	Through Hole	5	Brass	3.18 mm	0.125 in	10 mOhm	UL94 V-0	196.9 µin	5 µm	Flash	2.54 mm	0.1 in	Solder	SIP	Gold	1 A
