D01-9972142
ActiveHarwin Inc.

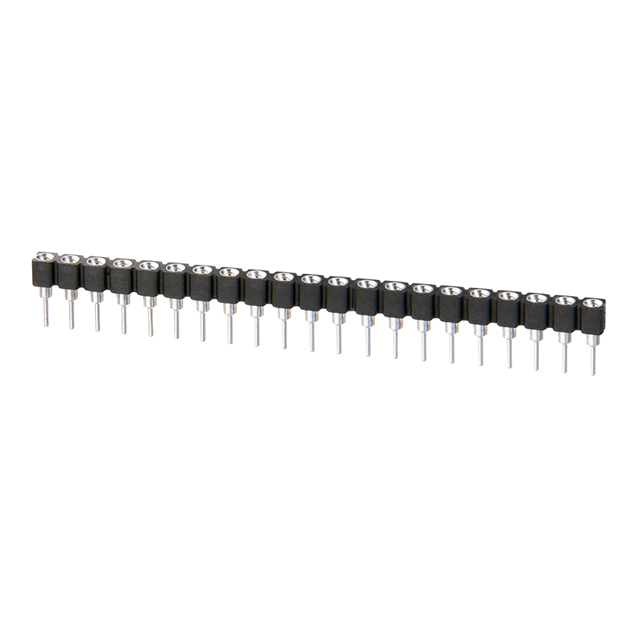

21 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
D01-9972142
ActiveHarwin Inc.
21 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D01-9972142 | D01-997 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Finish Thickness - Post | 196.9 µin | 196.9 µin |
| Contact Finish Thickness - Post | 5 µm | 5 µm |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Contact Material - Post [custom] | Brass | Brass |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | 1 A | 1 A |
| Housing Material | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Threaded |
| Number of Positions or Pins (Grid) | 21 | 3 - 22 |
| Number of Positions or Pins (Grid) | - | 1 x 19, 1 x 2, 1 x 12 |
| Number of Positions or Pins (Grid) | - | 19 |
| Number of Positions or Pins (Grid) | - | 1 x 32 |
| Number of Positions or Pins (Grid) | - | 20 - 32 |
| Number of Positions or Pins (Grid) | - | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Type | SIP | SIP |
D01-997 Series
3 POS. FEMALE SIL VERTICAL THROUGHBOARD IC STRIP ROHS COMPLIANT: YES
| Part | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Housing Material | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions or Pins (Grid) | Contact Material - Post [custom] | Termination Post Length | Termination Post Length | Contact Resistance | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Termination | Type | Contact Finish - Mating | Current Rating (Amps) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. D01-9970342 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | 3 | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | |||||
Harwin Inc. D01-9972242 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | 22 | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | |||||
Harwin Inc. D01-9971142 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | 11 | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | |||||
Harwin Inc. D01-9971942 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | 1 x 19 | 19 | ||||
Harwin Inc. D01-9972142 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | 21 | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | |||||
Harwin Inc. D01-9973242 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | 1 x 32 | 32 | ||||
Harwin Inc. D01-9970842 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | 8 | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | |||||
Harwin Inc. D01-9970242 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Threaded | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | 1 x 2 | 2 | ||||
Harwin Inc. D01-9972042 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A | 20 | |||||
Harwin Inc. D01-9970542 | Tin | 0.1 in | 2.54 mm | Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Beryllium Copper | -55 °C | 125 °C | Through Hole | 5 | Brass | 3.18 mm | 0.125 in | 10 mOhm | UL94 V-0 | 196.9 µin | 5 µm | Flash | 2.54 mm | 0.1 in | Solder | SIP | Gold | 1 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
D01-997 Series
21 (1 x 21) Pos SIP Socket Gold Through Hole
