R5ABLKBLKIF0
ActiveE-Switch

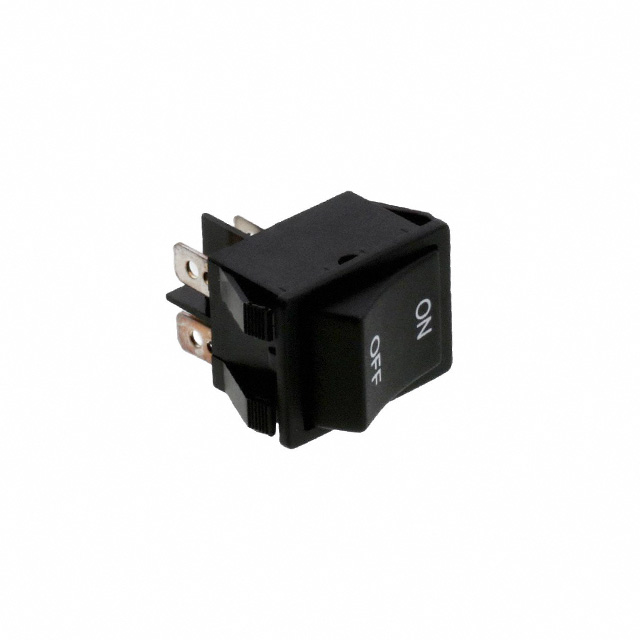

SWITCH ROCKER DPST 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R5ABLKBLKIF0
ActiveE-Switch
SWITCH ROCKER DPST 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R5ABLKBLKIF0 |
|---|---|
| Actuator Marking | Vertical, ON OFF |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.51 | |
| 10 | $ 1.30 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.06 | |||
Description
General part information
R5ABLKBL Series
Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
