ROCKER SWITCH, ILLUMINATED, DPST, ON-OFF, BLACK, PANEL MOUNT, 16 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

R5ABLKBLKFF0

Active

E-Switch

ROCKER SWITCH, ILLUMINATED, DPST, ON-OFF, BLACK, PANEL MOUNT, 16 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R5ABLKBLKFF0

Actuator Marking	O -
Actuator Type	Concave (Curved)
Approval Agency	CSA, UL
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

R5ABLKBL Series

Part	Current Rating (Amps)	Voltage Rating - AC	Approval Agency	Mechanical Life	Actuator Marking	Switch Function	Color - Actuator/Cap	Electrical Life	Actuator Type	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
E-Switch R5ABLKBLKIF0	20 A	125 V	CSA UL	30000 Steps	ON OFF Vertical	On-Off	Black	10000 Cycles	Concave (Curved)	DPST	30 mm	22.2 mm	Quick Connect - 0.250" (6.3mm)	55 °C	-20 C	Panel Mount Snap-In
E-Switch R5ABLKBLKFF0	20 A	125 V	CSA UL	30000 Steps	O -	On-Off	Black	10000 Cycles	Concave (Curved)	DPST	30 mm	22.2 mm	Quick Connect - 0.250" (6.3mm)	55 °C	-20 C	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.13
		10	$ 1.90
		25	$ 1.80
		75	$ 1.71
		150	$ 1.64
		300	$ 1.57
		525	$ 1.46
		1050	$ 1.39
Newark	Each	1	$ 2.44
		10	$ 2.14
		25	$ 2.04
		50	$ 1.98
		100	$ 1.91
		250	$ 1.84

Description

General part information

R5ABLKBL Series

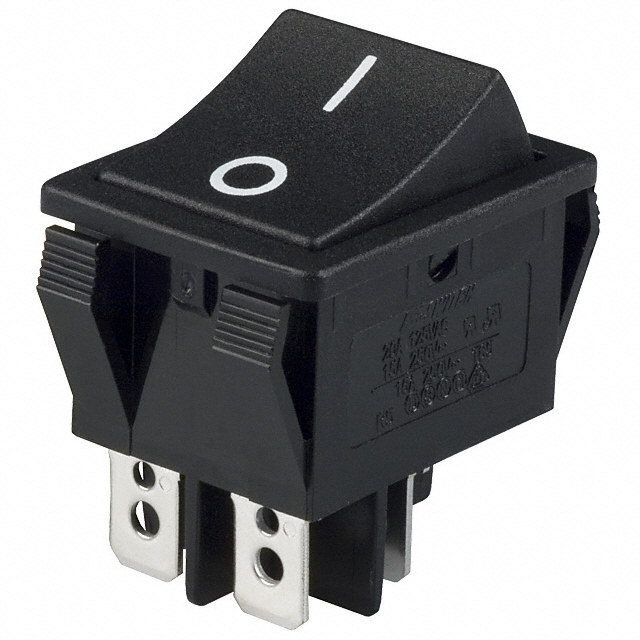

The R5ABLKBLKFF0 is a DPST illuminated panel-mount Rocker Switch with ON-OFF operation and silver-plated brass terminals. It is 0.85-inch in width and designed to snap into the panel. It has nylon 6/6 body, nylon 6/6 PC rocker and neon lamp or incandescent bulb illuminated rocker.
