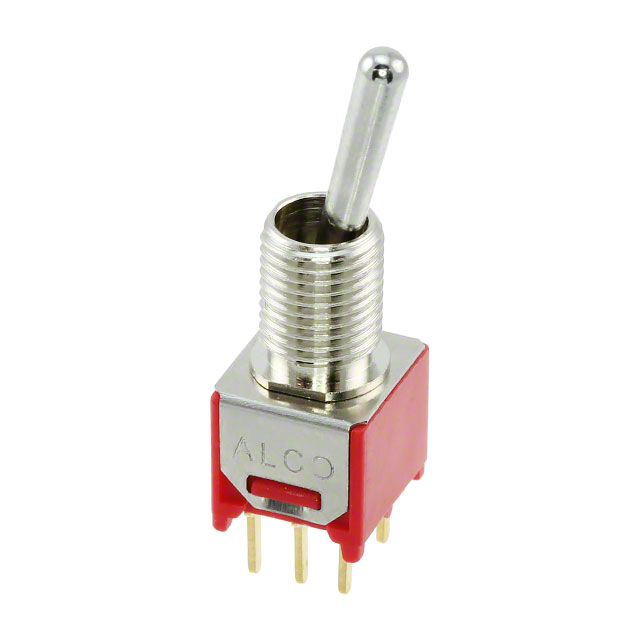

TMD1T4B5M2RE
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE DPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMD1T4B5M2RE
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE DPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMD1T4B5M2RE |
|---|---|
| Actuator Length [x] | 10.41 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Current Rating (Amps) | 0.4 VA |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.38 | |
| 10 | $ 5.51 | |||
| 25 | $ 5.19 | |||
| 50 | $ 4.97 | |||
| 100 | $ 4.75 | |||
| 300 | $ 4.43 | |||
| 500 | $ 4.28 | |||
| 1000 | $ 4.10 | |||
Description
General part information
TMD1T Series
Toggle Switch DPDT Panel Mount
