TMD1T4B5M1QE

Active

TE Connectivity Raychem Cable Protection

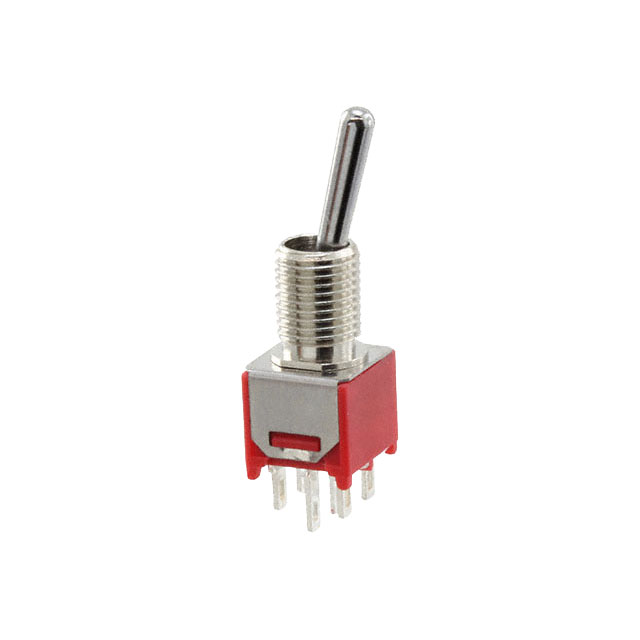

SWITCH TOGGLE DPDT 3A 120V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE DPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	TMD1T4B5M1QE

Actuator Length [x]	10.41 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	3 A
Features	Process Sealed
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Features	Voltage Rating - AC	Switch Function	Actuator Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Current Rating (Amps)	Illumination	Termination Style	Bushing Thread	Panel Cutout Dimensions [diameter]	Voltage Rating - DC
TE Connectivity Raychem Cable Protection TMD1T4B5M1QE	Process Sealed	120 V	On-On	Standard Round	DPDT	-30 ░C	85 °C	10.41 mm	3 A	Non-Illuminated	Solder Lug	1/4-40	0.25 in	28 V
TE Connectivity Raychem Cable Protection TMD1T4B5M2RE	Process Sealed	20 V	On-On	Standard Round	DPDT	-30 ░C	85 °C	10.41 mm	0.4 VA	Non-Illuminated	PC Pin	1/4-40	0.25 in	20 V
