C4BSWBX3220ZA0J

Active

KEMET

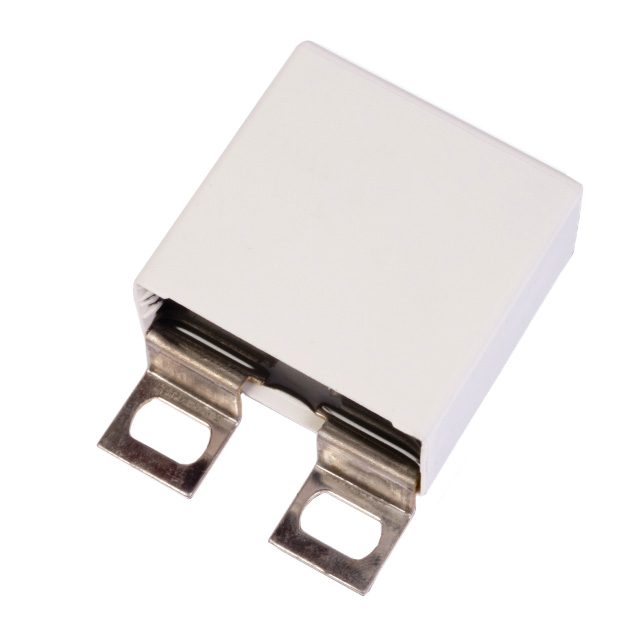

CAP FILM 0.22UF 5% 2KVDC SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Film Capacitors Catalog

C4BSWBX3220ZA0J

Active

KEMET

CAP FILM 0.22UF 5% 2KVDC SCREW

Deep-Dive with AI

DocumentsDatasheet Power Film Capacitors Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4BSWBX3220ZA0J

Applications	DC Link, DC Filtering, Snubber
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

C4BSWB Series

Part	Applications	Voltage Rating - DC	Voltage Rating - DC	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Mounting Type	ESR (Equivalent Series Resistance)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance
KEMET C4BSWBX3470ZBFJ	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box	1.575 in	40 mm	Metallized Polypropylene (PP)	Chassis Mount	5.1 mOhm	Screw Terminals	85 °C	-40 °C	5 %	0.866 in	22 mm	700 V	1.634 "	20 mm	41.5 mm	0.787 in	0.47 µF
KEMET C4BSWBX3100ZAFJ	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box	1.575 in	40 mm	Metallized Polypropylene (PP)	Chassis Mount	23.3 mOhms	Screw Terminals	85 °C	-40 °C	5 %	1.004 in	25.5 mm	700 V	1.634 "	20 mm	41.5 mm	0.787 in	100000 pF
KEMET C4BSWBX3220ZAFJ	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box	1.575 in	40 mm	Metallized Polypropylene (PP)	Chassis Mount	10.7 mOhms	Screw Terminals	85 °C	-40 °C	5 %	1.004 in	25.5 mm	700 V	1.634 "	20 mm	41.5 mm	0.787 in	0.22 µF
KEMET C4BSWBX3470ZGFJ	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box	1.575 in	40 mm	Metallized Polypropylene (PP)	Chassis Mount	5.1 mOhm	Screw Terminals	85 °C	-40 °C	5 %	0.866 in	22 mm	700 V	1.634 "	20 mm	41.5 mm	0.787 in	0.47 µF
KEMET C4BSWBX3470ZAFJ	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box	1.575 in	40 mm	Metallized Polypropylene (PP)	Chassis Mount	5.1 mOhm	Screw Terminals	85 °C	-40 °C	5 %	1.004 in	25.5 mm	700 V	1.634 "	20 mm	41.5 mm	0.787 in	0.47 µF
KEMET C4BSWBX3220ZA0J	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box			Metallized Polypropylene (PP)	Chassis Mount		Screw Terminals	85 °C	-40 °C	5 %								0.22 µF
KEMET C4BSWBX4150ZANJ	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box			Metallized Polypropylene (PP)	Chassis Mount	3.5 Ohms	Screw Terminals	85 °C	-40 °C	5 %	1.614 in	41 mm	700 V	2.264 in	35 mm	57.5 mm	1.378 "	1.5 µF
KEMET C4BSWBX3100ZMFJ	DC Filtering DC Link Snubber	2 kV	2 kVDC	Rectangular Box			Metallized Polypropylene (PP)	Chassis Mount		Screw Terminals	85 °C	-40 °C	5 %								100000 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	108	$ 15.56
Newark	Each	100	$ 16.30
		250	$ 15.74
		500	$ 14.63

Description

General part information

C4BSWB Series

0.22 µF Film Capacitor 2000V (2kV) Polypropylene (PP), Metallized Rectangular Box
